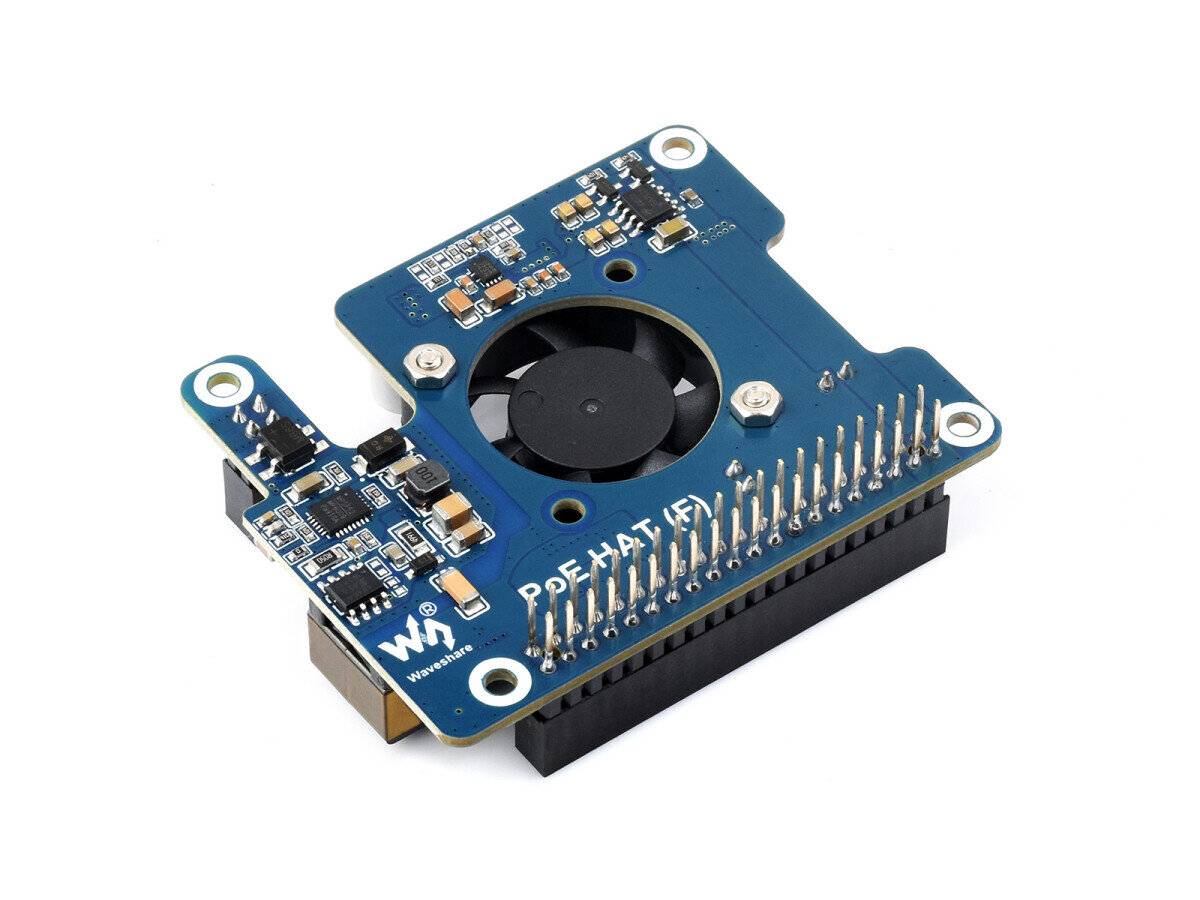

WaveShare Power Over Ethernet HAT (F) for Raspberry Pi 5 with Metal Heatsink Cooling Fan

Power Over Ethernet HAT (F) For Raspberry Pi 5 , High Power, Onboard Cooling Fan, With Metal Heatsink, Supports 802.3af/at network standard ThePoE HAT (F) is a 802.3af/at-compliant Power Over Ethernet accessory for the Raspberry Pi 5 . By using this small HAT and some proper 802.3af/at-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable. Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi 5 PoE (Power Over Ethernet) capability?IEEE 802.3af/at-compliant Fully isolated switched-mode power supply (SMPS) Onboard high speed active cooling fan, with metal heatsink, better heat dissipation Specifications PoE power input: 37V ~ 57V DC in Power output GPIO header: 5V 4.5A (MAX) 2P header: 12V 2A (MAX) Dimensions: 56.5 x 70.0mm Network standard: IEEE802.3af/at PoE Onboard 5V & 12V header outputs 5V header provides up to 4.5A output (MAX 25W for 12V+5V total output power)be able to power extra devices while providing stable power to Raspberry Pi Onboard MP8759GD buck chip Incorporates original voltage buck chipproviding up to 5A under sufficient heat dissipation condition How to Install Attach the thermal tapes first, then install metal heatsink and fix the PoE HAT * for reference only, please refer to the Package Content for detailed part list WIKI: Lieferumfang PoE HAT (F) x1 Metal heatsink x1 Thermal tape (3PCS) x1
