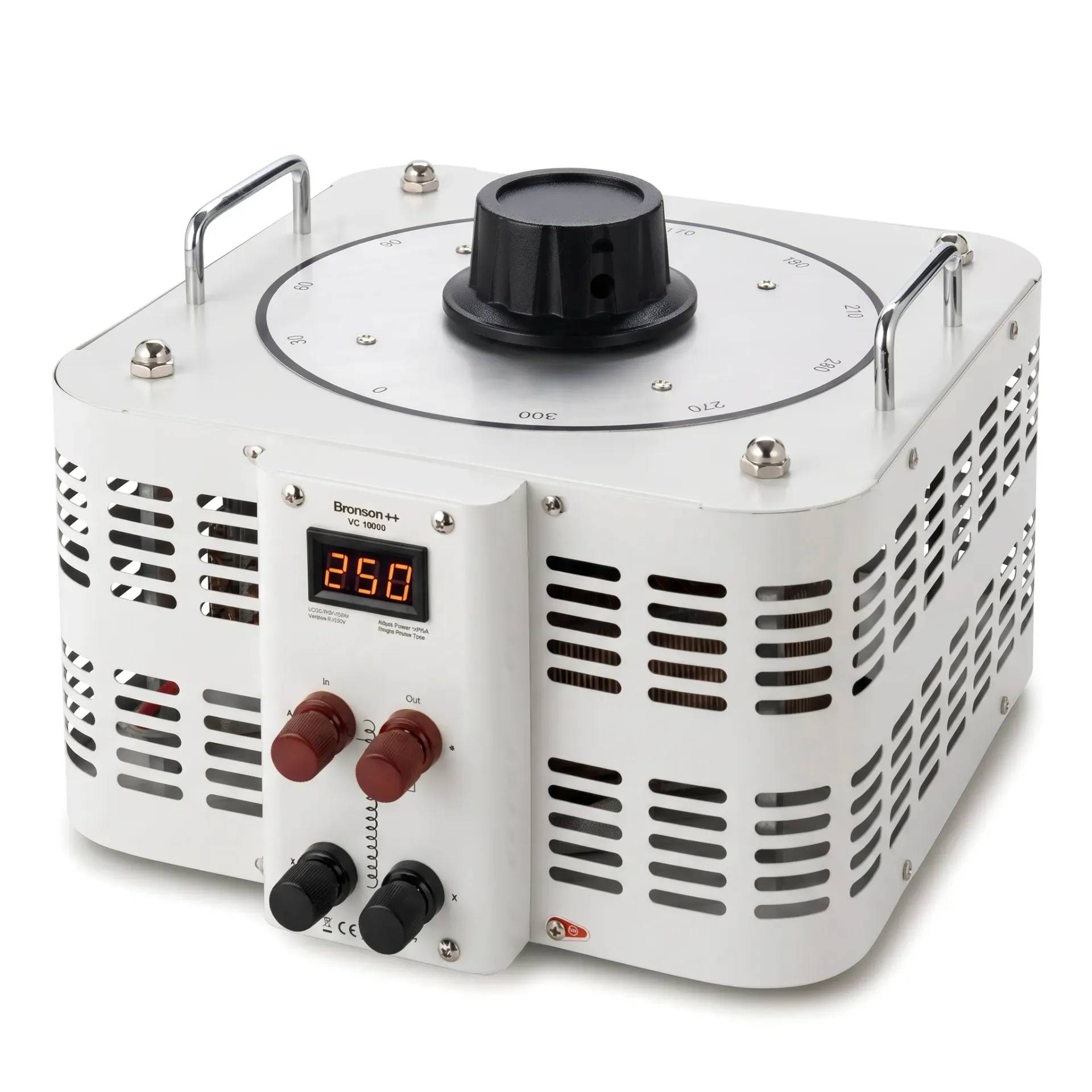

Bronson VC 10000: VariAC for Flexible Voltage Adjustment
EAN:
Hst.-Teile-Nr.:
Bestell-Nr.:
Anzahl
Gesamt
530,24 €
zzgl. MwSt.
Kostenfreier Versand
Highlights & Details
Bronson VC Series Manual VariACs
- Continuously Adjustable Voltage (0–300V).
- Digital Voltage Display for precise monitoring.
- Terminal Connections & Socket for versatile usage.
- Sturdy Construction for long-lasting performance.
- Easy Operation with clear scale and intuitive controls.
Technische Daten
- Maximum Power : 10000W
- Maximum Current : 40A
- Input Voltage : 220 - 240V AC
- Input Connection : Screw Terminal
- Output Voltage : 0 - 300V AC
- Output Connection : Screw Terminal
- Efficiency : ≥ 90%
- Phase : Single phase
- Display : Will light up when current is detected and indicate the output voltage with high accuracy
- Soft Start : No
- Galvanic Isolation : No
- Overcurrent Protection : No
- Short Circuit Protection : No
- Overheat Protection : No
- Frequency : 50/60 Hz
- Verpackungsart
Piece
- Ausgangsspannung (min.)
0 V/AC
- Ausgangsspannung (max.)
300 V/AC
- Anzahl Ausgänge
1 x
10000 W
- Abm.
(L x B x H) 40.5 x 33.7 x 25 cm
- Gewicht
20.8 kg
- Anzahl Eingänge
1 x
- Eingangsspannung (Anzahl x Spannung)
1 x 230 V/AC
- Eingangsspannung
230 V/AC
- Inhalt
1 St.
- Breite
33.7 cm
- Höhe
25 cm
- Länge
40.5 cm
- Typ
T-B-VC-10000
- Wirkungsgrad
0.9 %
Dokumente & Downloads
Bedienungs- und Sicherheitshinweise
Bedienungs- und Sicherheitshinweise 936267561 Bronson VC 10000: VariAC for Flexible Voltage Adjustment
Beschreibung
The VC Series provides a continuously adjustable output voltage ranging from 0 to 300V, allowing you to fine-tune power levels to match your specific requirements. A digital voltage display ensures accurate monitoring of the current output, while both terminal connections and a built-in socket offer flexibility for various applications. Whether in labs, workshops, or hobby environments, these rugged Variacs are designed for continuous operation and user-friendly handling.
Hinweise
- Sicherheitsrelevantes Bauteil - Installation nur durch Fachhandwerker
