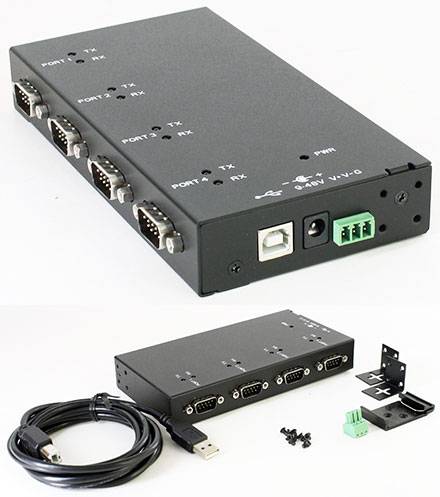

CTF4XRS232USB (Automotive/Industrie 4-port RS232 USB Adapter, FT4232HL, 9-48VDC)
EAN:
Hst.-Teile-Nr.:
Bestell-Nr.:
3 Stück
Neu
Rechnungsstellung für alle Partner-Artikel jetzt direkt durch ConradMenge (Stück)
Ersparnis
Verpackungspreis (zzgl. MwSt.)
1
-
82,96 €
5
2% = 1,77 €
81,19 €
10
4% = 3,53 €
79,43 €
Mengenrabatte variieren je nach Verkäufer
Sie sparen 0,00 €
Anzahl
Gesamt (82,96 € / Stück)
82,96 €
zzgl. MwSt.
& Nur noch 3 Stück verfügbar
Highlights & Details
- 15KV ESD protection !
- 4x RS232 !
- Wall/DIN mountable !
- 600W Surge protection !
Technische Daten
- Spezifikation
USB 2.0
- Schnittstellen (Ausgang)
RS232
- Anzahl Ausgänge
4 x
- Kabellänge
2 m
- Umschalter/Verteiler-Besonderheiten
Metallgehäuse
- Breite
164 mm
- Höhe
26 mm
- Tiefe
83.5 mm
- UKCA
Ja
Beschreibung
Dieser 4-Port Industrie RS232 zu USB 2.0 Adapter mit 15KV ESD Schutz erweitert Ihr System um 4x RS232 Anschlüsse an einem USB-Anschluss. Die maximale Datenübertragungsrate beträgt 921.6Kb/s und der Hub ist abwärtskompatibel zum USB 2.0 und 1.1 Standard. Der Hub kommt mit eingebautem 15KVDC ESD- und Überspannungsschutz. Der Hub kann an der Wand und an DIN-Schienen montiert werden. Der Stromeingangsbereich reicht von 9-48VCDC. Der Adapter kann auch über USB vom angeschlossenen System mit Strom versorgt werden.
Features
- Industrial grade rugged metal housing enclosure design to withstand harsh industrial environments
- Redundant 9VDC to 48VDC power input
- 15KV ESD interface protection
- Power input surge protection (600W)
- Over-current detection and protection circuit design
- Wall and DIN rail mount support
Specifications
- Chipset: FTDI FT4232HL
- Supports serial port data transfer rate up to 921.6Kb/s
- Surge Protection: 600W (max)
- Metal housing with mounting mechanism
- Connectors
1x USB B (4-pol) female
4x DB-9 (9-pol, D-Sub) male
1x DC round plug power input
1x 3 pol power input plug
- LED
RX/TX activity (data status) for each RS232 port
Power on
- Input voltage: 9VDC~84VDC
- Separate 128-byte / 384-byte FIFO buffers for each port
- Product dimensions: 164X83.5X26 MM
- Product color: Black
- Environmental conditions:
Operating temperature: 32° F to 131° F (0° C to 60° C)
Operating humidity: 10% to 90% RH
Storage temperature: -4° F to 185° F (-20° C to 85° C)
Storage humidity: 10% to 90% RH
- Included USB 2.0 cable:
Type B (M) to Type A (M)
Length: 6.6 ft (2m)
Requirements
- Desktop or notebook with an available USB port (USB 2.0 is recommended)
- Windows 10 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit) / Vista(32-/64-bit) / XP (32-/64-bit) / Server 2003 & 2008(32-/64-bit) / Server 2008 R2 / Mac OS X v10.5 / v10.6 / v10.7 / v10.8 / v10.9 / v10.10 / Linux
Package Contents
- 4-Port Industrial RS232 USB Hub with 15KV ESD Protection
- USB 2.0 Type A to Type B cable (2 meters)
- DIN-Rail and wall mount kit
- Driver CD
- Terminal block
- Installation guide
