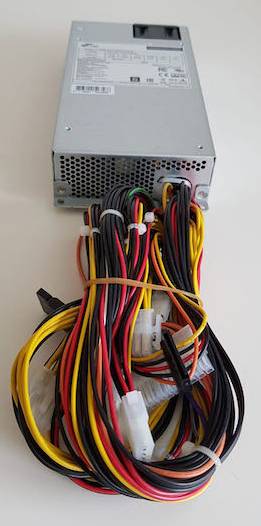

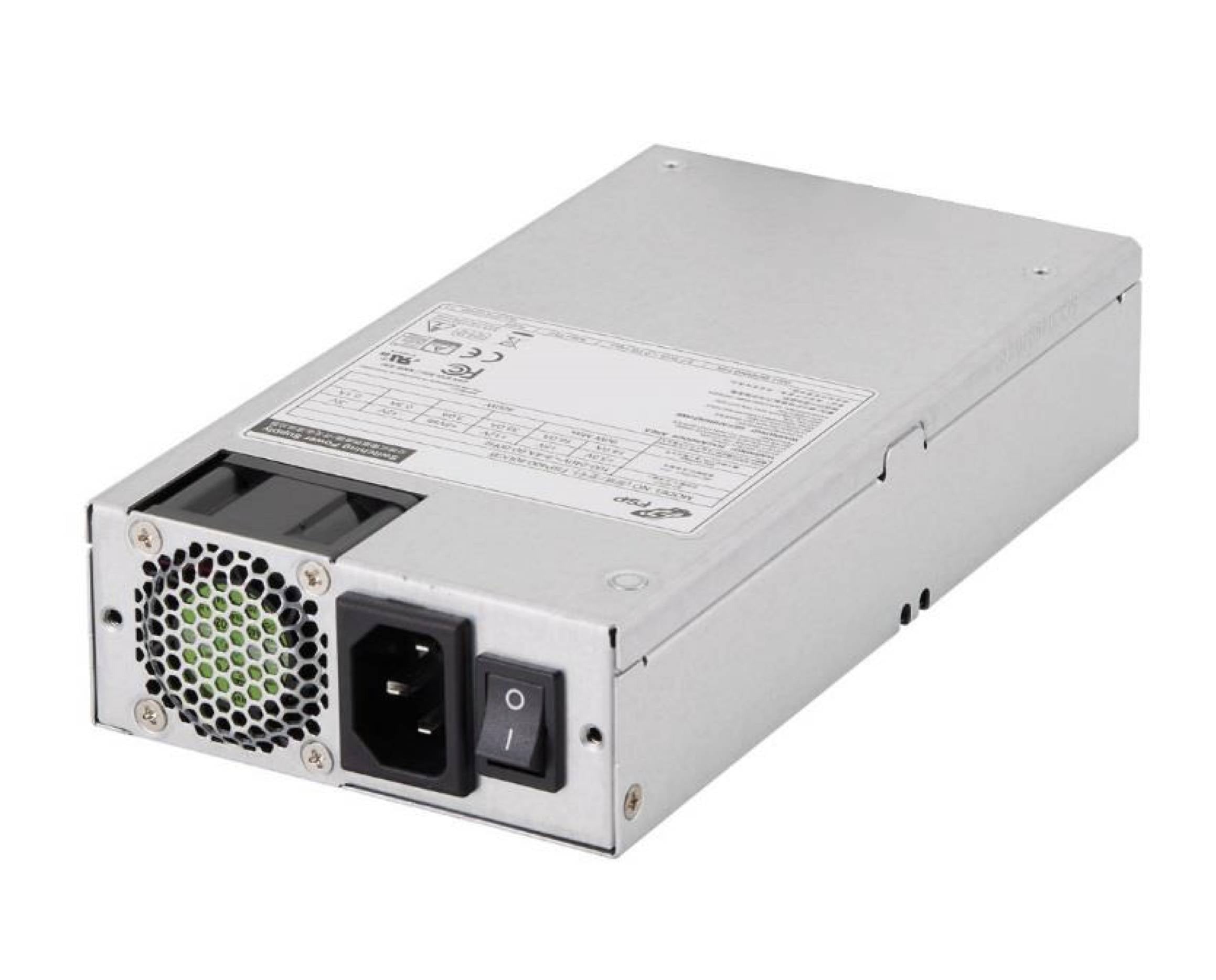

FSP PC Netzteil 300Watt FSP300-50UCB 9PA300H701
Hst.-Teile-Nr.:
Bestell-Nr.:
Produkt-Art
Industrie PC-Netzteil
Herstellerfarbe
Schwarz
Abm.
(B x T) 100 mm x 190 mm
Tiefe
190 mm
Breite
100 mm
Datenblatt (PDF)
Anzahl
Gesamt
87,07 €
zzgl. MwSt.
6,30 €
Nur noch 1 Stück verfügbar
Highlights & Details
FSP300-50UCB PC NetzteilInternal 4 cm fan with IEC 62368 standard ventsLow Ripple & NoiseOCP,OTP,OVP circuit protectionMTBF:100K hours at 25°C
- FSP300-50UCB
- 80 PLUS Bronze
- Internal 4 cm fan with IEC 62368 standard vents opening
- Low Ripple & Noise
- Support OCP, OTP and OVP circuit protection
- Short circuit protection on all outputs
- Resettable power shut down
- 100% Hi-pot tested
- MTBF:100K hours at 25°C
- 100% burn-in under high ambient temperature (50°C)
- Compliant with EN62368
Technische Daten
- Produkt-Art
Industrie PC-Netzteil
- Herstellerfarbe
Schwarz
- Abm.
(B x T) 100 mm x 190 mm
- Tiefe
190 mm
- Breite
100 mm
- Gewicht
1300 g
- -12 V/DC
0.3 A
- +12 V/DC (1)
25 A
- +12 V/DC (3)
25 A
- +5 V/DC
3 A
- +3,3 V/DC
12 A
- Betriebsspannung
90 - 264 V
Dokumente & Downloads
Datenblatt
Datenblatt 816677851 FSP PC Netzteil 300Watt FSP300-50UCB 9PA300H701
Beschreibung
FSP300-50UCB80 PLUS Bronze
Internal 4 cm fan with IEC 62368 standard vents opening
Low Ripple & Noise
Support OCP, OTP and OVP circuit protection
Short circuit protection on all outputs
Resettable power shut down
100% Hi-pot tested
MTBF:100K hours at 25°C
100% burn-in under high ambient temperature (50°C)
Compliant with EN62368
Internal 4 cm fan with IEC 62368 standard vents opening
Low Ripple & Noise
Support OCP, OTP and OVP circuit protection
Short circuit protection on all outputs
Resettable power shut down
100% Hi-pot tested
MTBF:100K hours at 25°C
100% burn-in under high ambient temperature (50°C)
Compliant with EN62368
