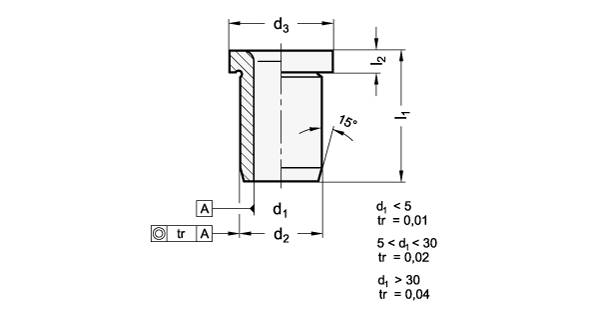

GANTER NORM DIN 172-B1,5-9-A, DIN 172 Guide Bushings Steel, Drill Bushings, with Collar
Hst.-Teile-Nr.:
Bestell-Nr.:
Datenblatt (PDF)
370 Stück
Neu
Rechnungsstellung für alle Partner-Artikel jetzt direkt durch ConradAnzahl
Min.: 11
Gesamt
104,83 €
zzgl. MwSt.
& Kostenfreier Versand
14 Tage Rückgaberecht inklusive
Technische Daten
- Steel
- Hardened (HRC 62 ±2)
- Fit size d1 / d2 ground
- Inhalt
1 St.
- UKCA
Ja
Dokumente & Downloads
Datenblatt
Datenblatt 929500917 GANTER NORM DIN 172-B1,5-9-A, DIN 172 Guide Bushings Steel, Drill Bushings, with Collar
Beschreibung
Guide bushings DIN 172 are characterized by the tight dimensional and positional tolerances in connection with the hardened and finely machined surface. As a result, they are suitable for extremely universal use in many applications.
Holes with tolerance H7 are recommended for installing the bushings. In connection with the outer diameter of the bushing with a tolerance of n6, use of a transition adapter is recommended.
For guide applications, combination with the guide pins GN 771.1 is recommended.
Holes with tolerance H7 are recommended for installing the bushings. In connection with the outer diameter of the bushing with a tolerance of n6, use of a transition adapter is recommended.
For guide applications, combination with the guide pins GN 771.1 is recommended.
