Planet Switch nicht verwaltet 4 x 10/100/1000 + 2 x Gigabit SFP an DIN-Schiene montierbar Gleichstrom

4-port 10/100/1000Base-T RJ-45 with auto MDI /
MDI-X function (unmanaged) 2-port SFP slot interface,
SFP supports 1000Base-X and 100Base-FX transceiver
via DIP switch configured Fiber Port Redundancy
Link status auto-detect and redundant on Dual
ports with the same connector type Only Primary-Port
is active at a time,
the Backup-Port is blocked When Primary-Port link
failure occurs,
the traffic will swap to Backup-Port automatically.
  Layer 2 Features Supports Auto-negotiation and
10/100Mbps half /
full duplex and 1000Mbps full duplex mode High
performance Store and Forward architecture,
runt/CRC filtering eliminates erroneous packets
to optimize the network bandwidth Prevents packet
loss with back pressure (Half-Duplex) and IEEE
802.3x PAUSE frame flow control (Full-Duplex)
9K Jumbo Frame Size support Backplane (Switching
Fabric): 12Gbps Integrated address look-up engine,
support 1K absolute MAC addresses Automatic address
learning and address aging CSMA/CD Protocol Industrial Case /
Installation Slim IP30 metal case protection DIN
Rail and Wall Mount Design Redundant Power Design
- 12 to 48V DC,
redundant power with polarity reverse protect
function - AC 24V power adapter acceptable Supports
EFT protection 6000 VDC for power line Supports
6000 VDC Ethernet ESD protection -40 to 75 degrees
C operating temperature   Flexible,
Reliable and Industrial-grade Network Distance

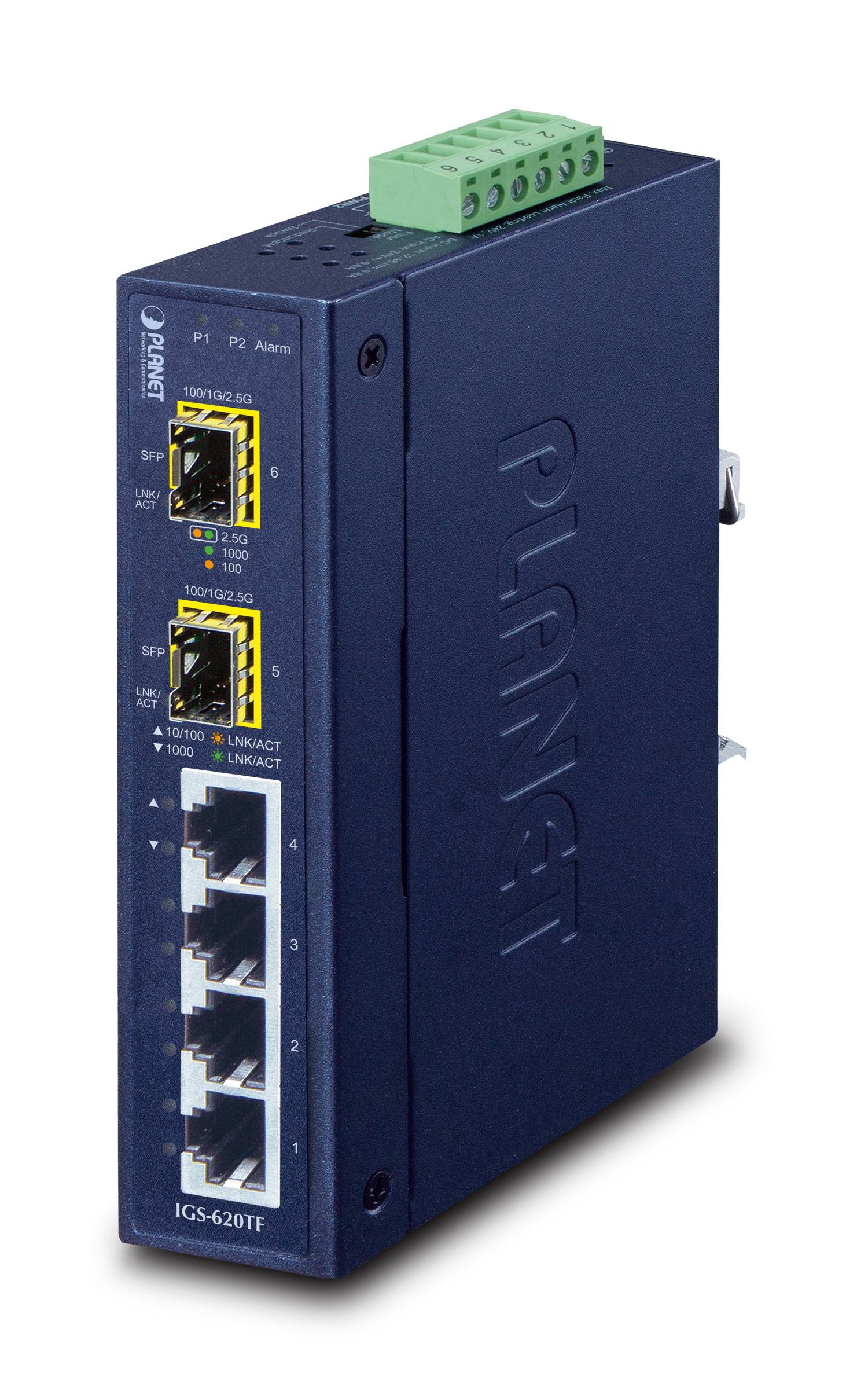

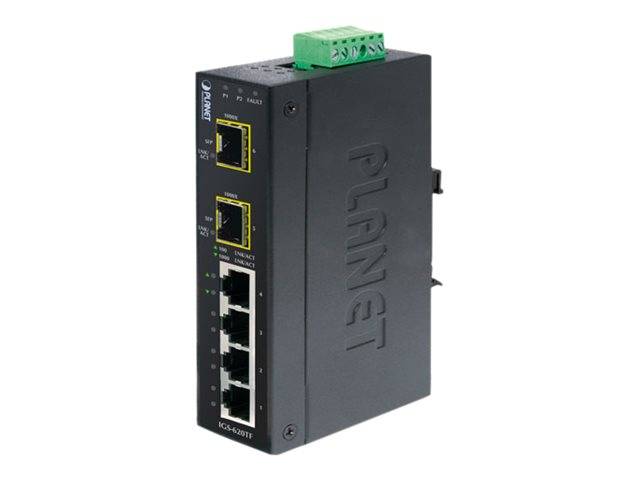

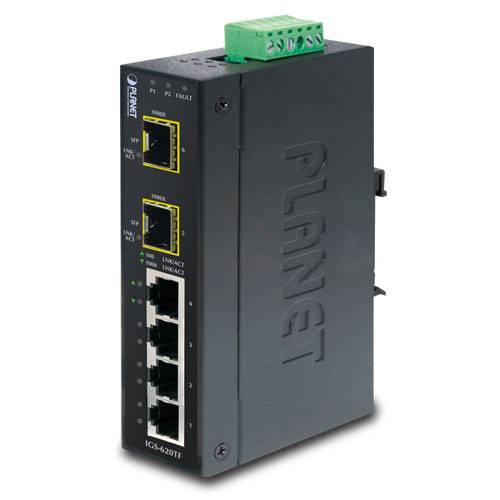

Extension Solution The PLANET IGS-620TF is an
Industrial 6-port full Gigabit Ethernet Switch
providing non-blocking wire-speed performance
and great flexibility for Gigabit Ethernet extension
in harsh industrial environment.
It provides 4-port 10/100/1000Base-T RJ-45 copper
and 2 extra 100/1000Base-X SFP fiber optic interfaces
delivered in an IP30 rugged strong case with redundant power system.
The IGS-620TF is well suited for applications
in deploying surveillance system,
and securing control and wireless service in climatically
demanding environments with wide temperature range
from -40 to 75 degrees C.
  Fiber-Optical Link Capability Enables Extension
of Network Deployment The two SFP slots are compatible
with 100Base-FX or 1000Base-SX /
LX / WDM through SFP (Small Form Factor Pluggable)
fiber-optic transceivers.
The fiber optical uplink capability guarantees
the throughput to all nodes hooked into the network
and the Gigabit Ethernet distance can be extended
from 550 meters (Multi-Mode fiber cable) up to
10/20/30/40/50/70/120 kilometers (Single-Mode fiber cable),
also the Fast Ethernet distance can be extended
from 2km (Multi-Mode fiber cable) up to 20/40/60
kilometers (Single-Mode fiber cable).
They are well suited for applications within the
factory data centers and distributions   Adjustable
6-Port Switch Mode or 4 + 2 Fiber Redundant Mode
The two SFP slots allow to change the operation
mode with its built-in DIP switch.
Via the built-in DIP switch, the IGS-620TF can
be configured as 6-port Ethernet switch or 4+2
fiber redundant mode.
With the 6-port switch mode, the IGS-620TF can
operate in Store-and-Forward mechanism with high performance;
on the other hand, when in the 4+2 fiber redundant mode,
it provides rapid fiber redundancy of link for
highly critical Ethernet applications.
The redundant mode also supports auto-recovering function.
If the destination port of a packet is link-down,
it will forward the packet to the other port of
the backup pair.
   Environmentally Hardened Design The IGS-620TF
is equipped with the slim-type IP30 metal case
for easy deployment in heavy Industrial demanding environments.
With IP30 industrial case protection, the IGS-620TF
provides a high level of immunity against electromagnetic
interference and heavy electrical surges which
are usually found on plant floors or in curb side
traffic control cabinets.
Being able to operate under the temperature range
from -40 to 75 degrees C,
the IGS-620TF can be placed in almost any difficult environment.
The IGS-620TF also allows either DIN rail or wall
mounting for efficient use of cabinet space.
  Convenient and Reliable Power System To enhance
the operation reliability and flexibility,
the IGS-620TF is equipped with two DC power input
connectors for redundant power supply installation.
It also possesses an integrated power supply source
with wide-ranging voltages (12 to 48V DC or 24V
AC) for worldwide high availability applications
requiring dual or backup power inputs.
