Sick GTB20M-3CSD1160ZZZ, Fotoelektrischer Sensor, P/n: 1120797
EAN:
Hst.-Teile-Nr.:
Bestell-Nr.:
Typ
GTB20M-3CSD1160ZZZ
UKCA
Ja
7 Stück
Neu
Rechnungsstellung für alle Partner-Artikel jetzt direkt durch ConradAnzahl
Gesamt
338,91 €
zzgl. MwSt.
& Kostenfreier Versand
Nur noch 7 Stück verfügbar
14 Tage Rückgaberecht inklusive
Technische Daten
- Functional principle: Photoelectric proximity sensor
- Functional principle detail: Background suppression

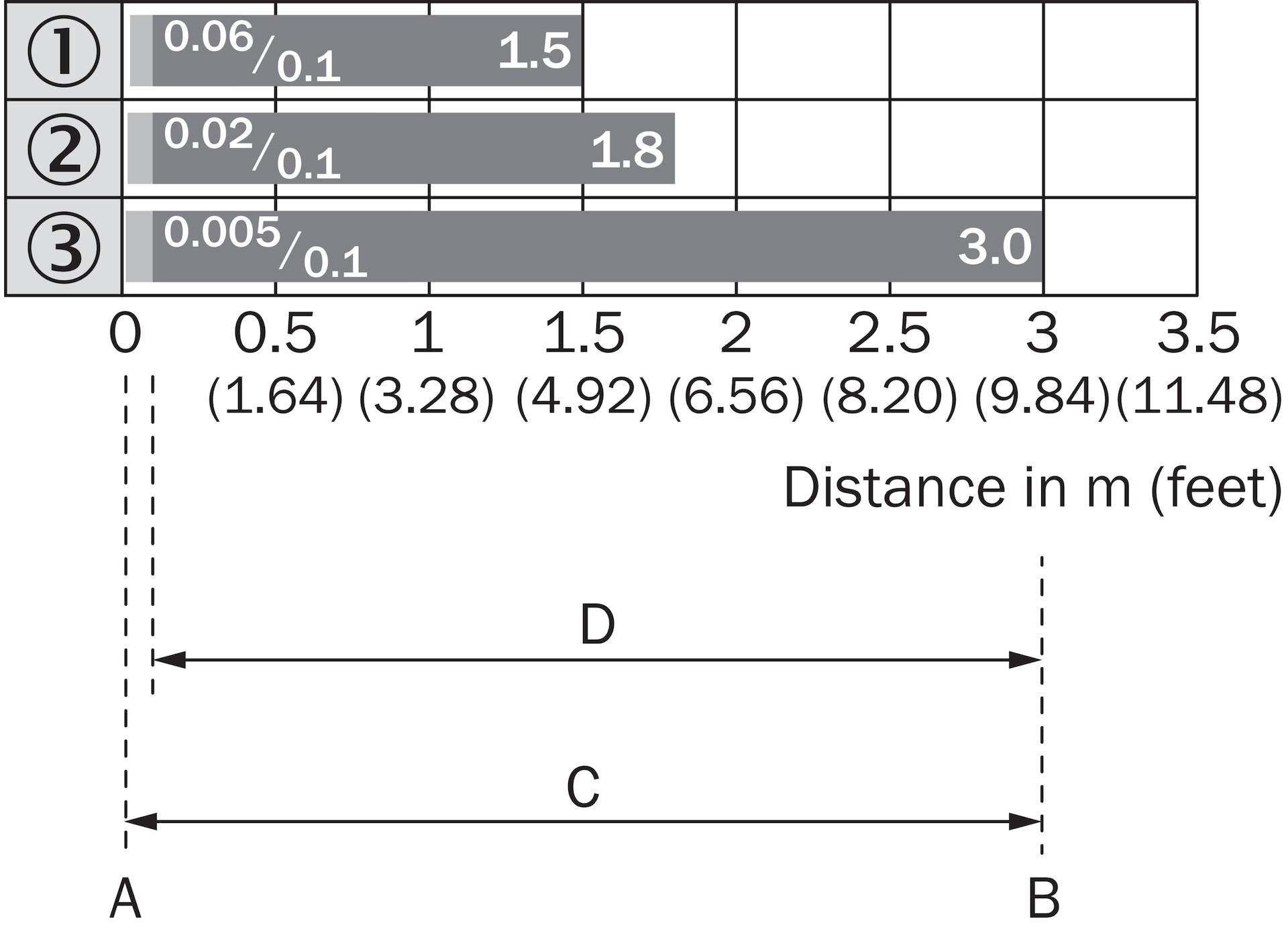

- Sensing range:
- Sensing range min.: 0.005m
- Sensing range max.: 3m
- Adjustable switching threshold for background suppression: 0.1m... 3m
- Reference object: Object with 90% remission factor (complies with standard white according to DIN503
- Minimum distance between set sensing range and background (black 6% / white 90%): 200mm, at a distance of 1000mm
- Emitted beam:
- Light source: LED
- Type of light: Infrared light
- Shape of light spot: Rectangular
- Light spot size (distance): 28mm (500mm)
- Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle): +/ 1.5 (at Ta= +23 C)
- Key LED figures:
- Normative reference: EN62471:200809 | IEC62471:2006, modified
- LED risk group marking: Free group
- Wave length: 850nm
- Average service life: 100,000h at T a = +25C
- Adjustment:

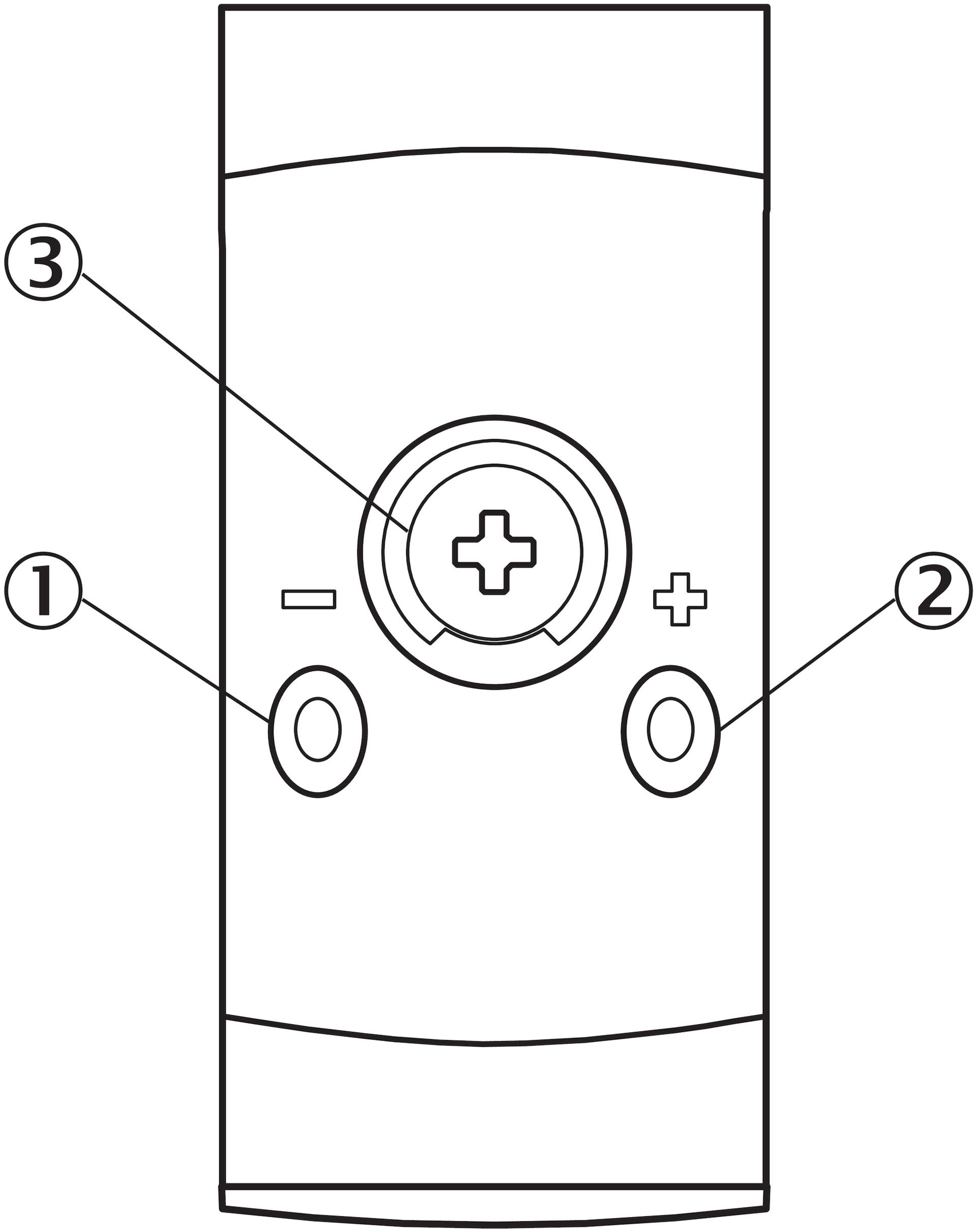

- Potentiometer: For setting the sensing range, 7rotations
- Indication:
- LED green: Operating indicator
- Static on: power on
- Static off: object not present
- LED yellow: Status of received light beam
- Static on: object present
- Sensing range:
- Sensing range min.: 0.005m
- Sensing range max.: 3m
- Adjustable switching threshold for background suppression: 0.1m... 3m
- Reference object: Object with 90% remission factor (complies with standard white according to DIN503
- Minimum distance between set sensing range and background (black 6% / white 90%): 200mm, at a distance of 1000mm
- Emitted beam:
- Light source: LED
- Type of light: Infrared light
- Shape of light spot: Rectangular
- Light spot size (distance): 28mm (500mm)
- Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle): +/ 1.5 (at Ta= +23 C)
- Key LED figures:
- Normative reference: EN62471:200809 | IEC62471:2006, modified
- LED risk group marking: Free group
- Wave length: 850nm
- Average service life: 100,000h at T a = +25C
- Adjustment:
- Potentiometer: For setting the sensing range, 7rotations
- Indication:
- LED green: Operating indicator
- Static on: power on
- Static off: object not present
- LED yellow: Status of received light beam
- Static on: object present
- Supply voltage U e : 24VAC/DC... 240VAC/DC
- Ripple: 10%
- Usage category: DC13 (according to EN60947 AC15 (according to EN60947
- Current consumption: 10mA, 45mA, Without load At 230VAC/DC, Without load At 24VAC/DC
- Protection class: II
- Digital output:
- Number: 2(Complementary)
- Type: Relay, SPDT, electrically isolated
- Switching mode: Light/dark switching
- Output current I max. : 4A@250 VAC, 4A@24 VDC, 0.11A@250 VDC
- : UL: 4A@250 VAC, general use
- : 4A @ 250VAC, resistive (NO)
- : 3A @ 250VAC, resistive (NC)
- : 4A @ 24VDC, NO, general use
- : 3A @ 24VDC, NC, general use
- : R300/B300 (NO contacts only)
- Response time: 15ms
- Switching frequency: 10Hz
- Pin/Wire assignment:
- BN 1: L/( +)
- BU 2: N/()
- GY 3: Relay COM
- BK 4: Relay NO
- Relay output, light switching, object present → output HIGH
- WH 5: Relay NC
- Relay output, dark switching, object present → output LOW
- Digital output:
- Number: 2(Complementary)
- Type: Relay, SPDT, electrically isolated
- Switching mode: Light/dark switching
- Output current I max. : 4A@250 VAC, 4A@24 VDC, 0.11A@250 VDC
- : UL: 4A@250 VAC, general use
- : 4A @ 250VAC, resistive (NO)
- : 3A @ 250VAC, resistive (NC)
- : 4A @ 24VDC, NO, general use
- : 3A @ 24VDC, NC, general use
- : R300/B300 (NO contacts only)
- Response time: 15ms
- Switching frequency: 10Hz
- Pin/Wire assignment:
- BN 1: L/( +)
- BU 2: N/()
- GY 3: Relay COM
- BK 4: Relay NO
- Relay output, light switching, object present → output HIGH
- WH 5: Relay NC
- Relay output, dark switching, object present → output LOW
- Housing: Rectangular
- Dimensions (Wx Hx D): 23.5mmx 74.5mmx 63mm

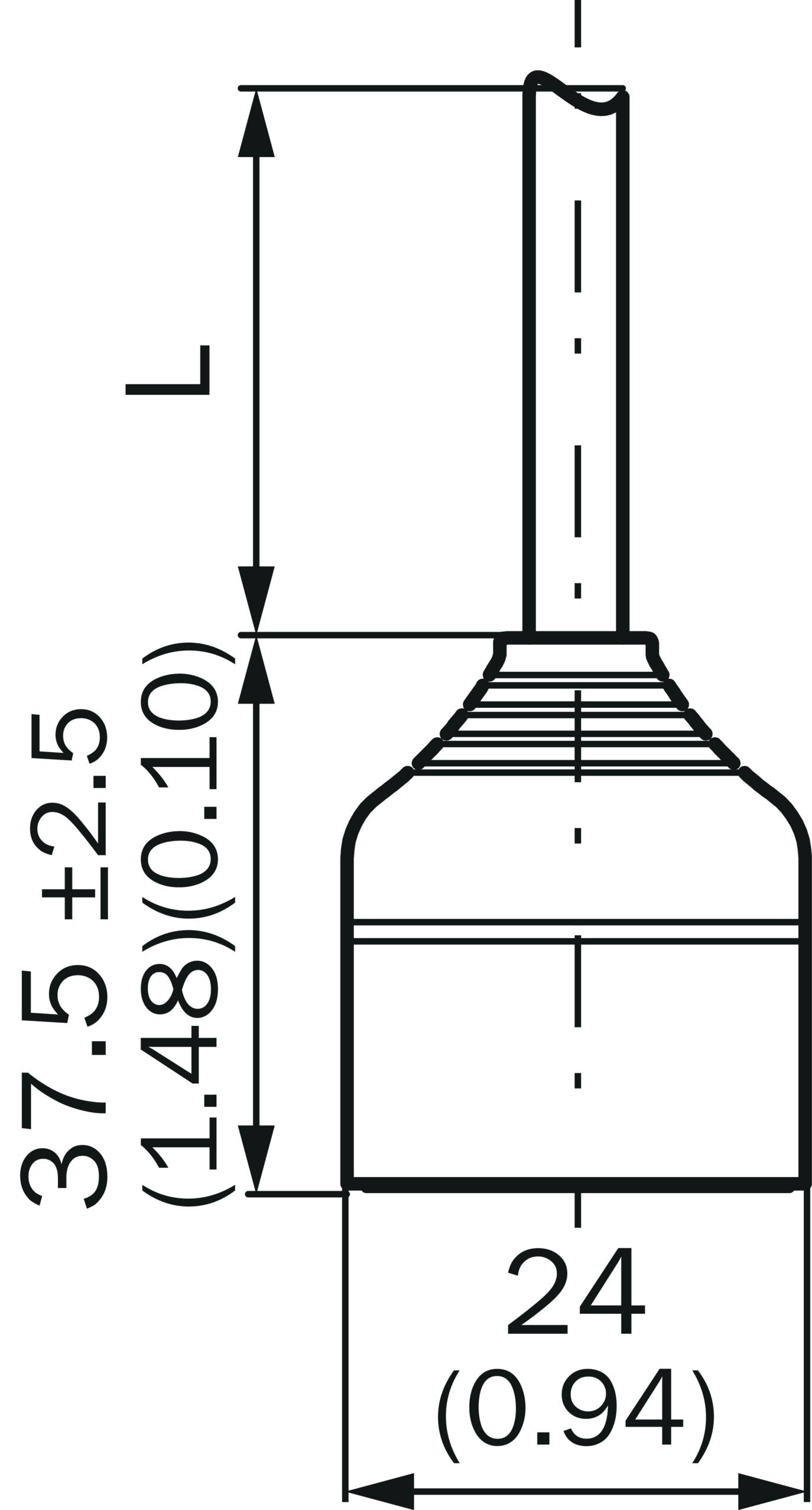

- Connection: Cable with Q7 male connector, 7pin, AC/UCcoded, 300mm
- Connection detail:
- Deepfreeze property: Do not bend below 0C
- Length of cable (L): 270mm
- Material:
- Housing: Plastic, ABS
- Front screen: Plastic, PMMA
- Cable: Plastic, PVC
- Male connector: Plastic, PC
- Weight: Approx.155g
- Connection detail:
- Deepfreeze property: Do not bend below 0C
- Length of cable (L): 270mm
- Material:
- Housing: Plastic, ABS
- Front screen: Plastic, PMMA
- Cable: Plastic, PVC
- Male connector: Plastic, PC
- Enclosure rating: IP65 (EN6052
- Ambient operating temperature: 30C... +60C
- Ambient temperature, storage: 40C... +70C
- Typ. Ambient light immunity: Sunlight: 20,000lx
- Shock resistance: 30g, 11ms (3positive and 3negative shocks along X, Y, Z axes, 18total shocks (EN600682
- Vibration resistance: 10Hz... 1,000Hz (Amplitude 1mm, 3x 30min (EN600682)
- Air humidity: 35%... 95%, relative humidity (no condensation)
- Electromagnetic compatibility (EMC): EN6094752, EN6100063
- UL File No.: NRKH.E348498 & NRKH7.E348498
- EU declaration of conformity
- UK declaration of conformity
- ACMA declaration of conformity
- MAR declaration of conformity
- ChinaRoHS
- CCC Certificate
- cULus Certificate
- Photobiological safety (IEC EN 6247:
- ECLASS 5.0: 27270904
- ECLASS 5.1.4: 27270904
- ECLASS 6.0: 27270904
- ECLASS 6.2: 27270904
- ECLASS 7.0: 27270904
- ECLASS 8.0: 27270904
- ECLASS 8.1: 27270904
- ECLASS 9.0: 27270904
- ECLASS 10.0: 27270904
- ECLASS 11.0: 27270904
- ECLASS 12.0: 27270903
- ETIM 5.0: EC002719
- ETIM 6.0: EC002719
- ETIM 7.0: EC002719
- ETIM 8.0: EC002719
- UNSPSC 16.0901: 39121528
- Typ
GTB20M-3CSD1160ZZZ
- UKCA
Ja
