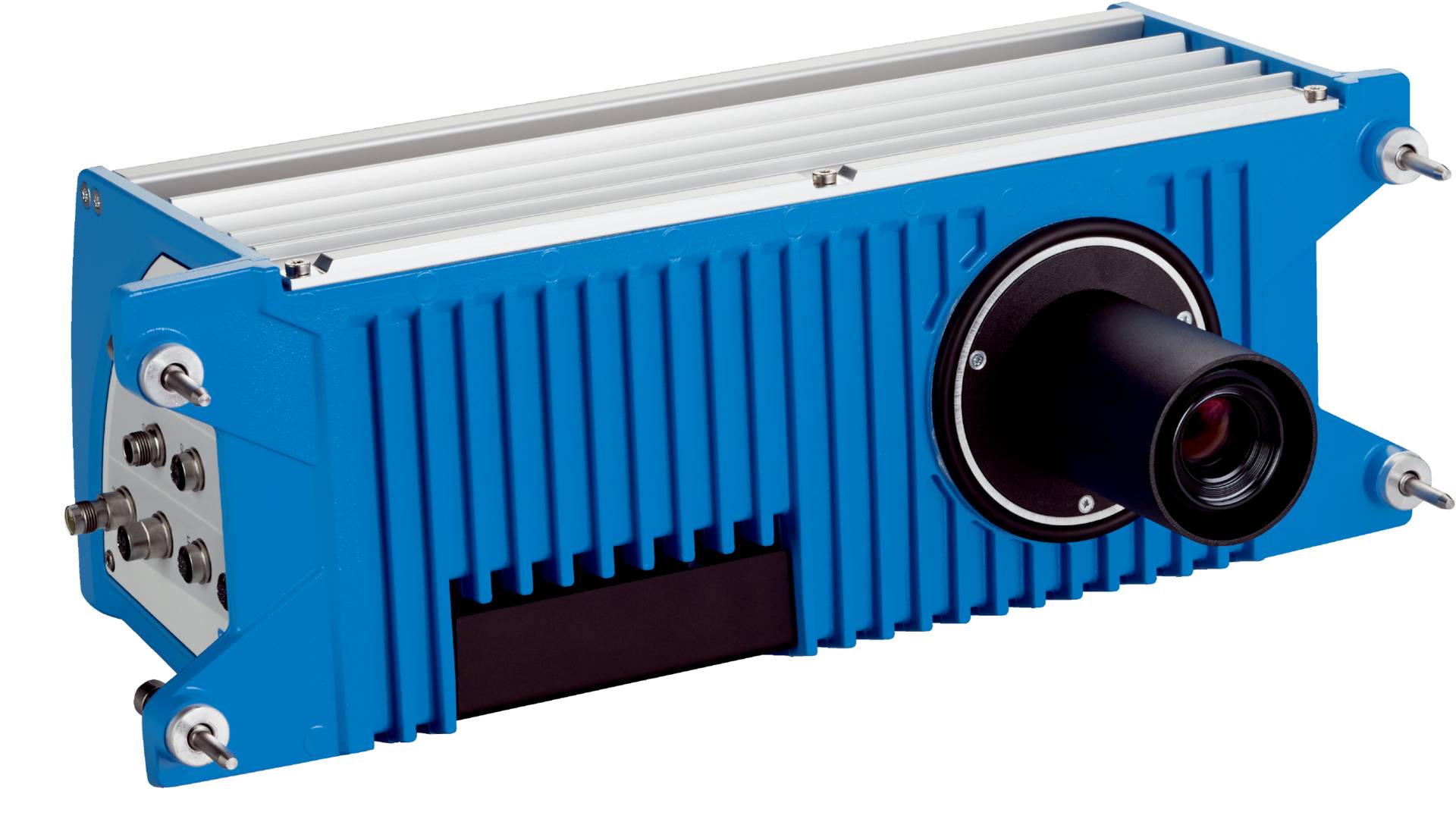

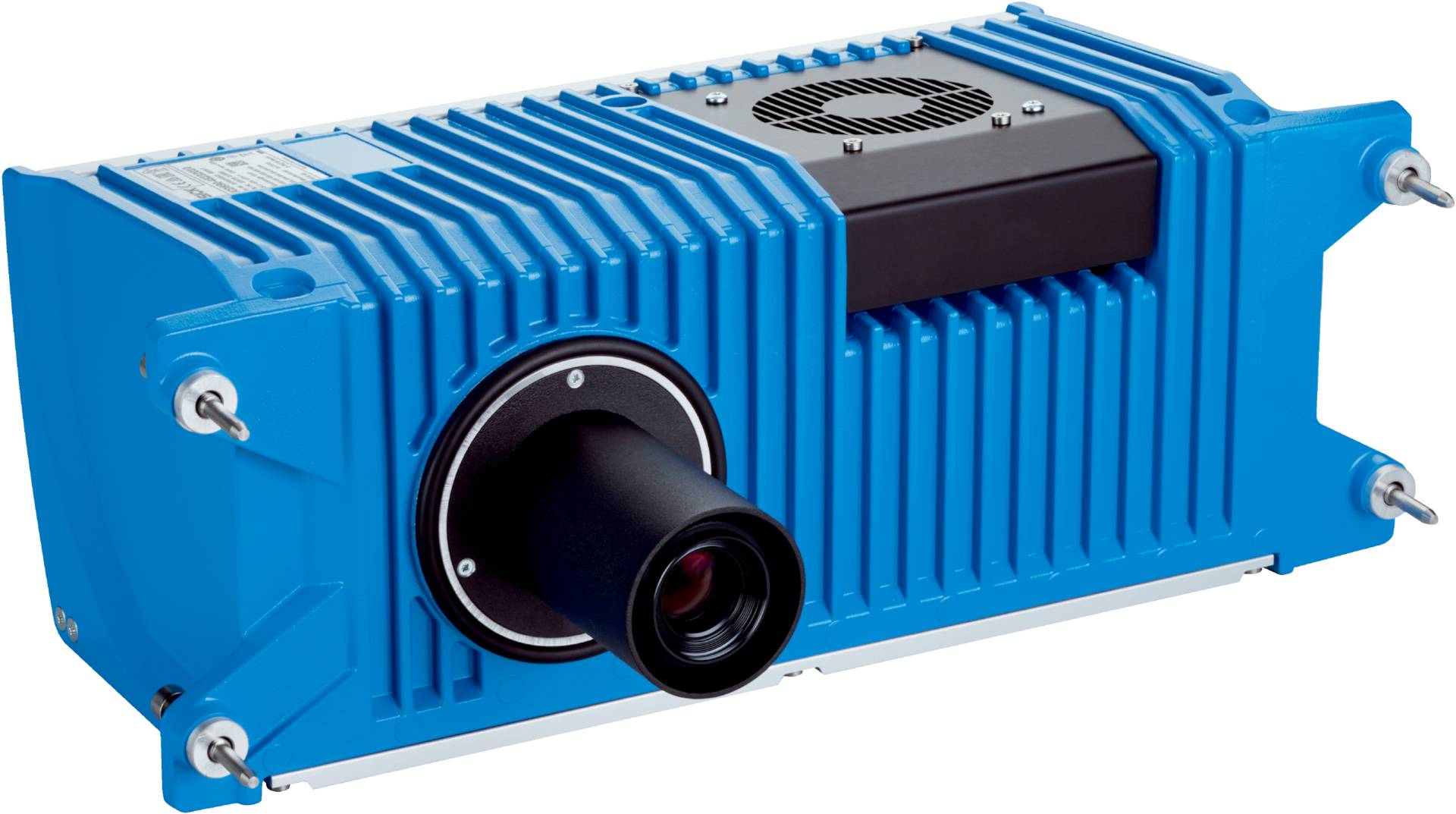

Sick ICD890-44342031, Bildbasierter Codeleser, P/n: 1136999
Hst.-Teile-Nr.:
Bestell-Nr.:
Produkt-Art
Codeleser
Typ
ICD890-44342031
Auflösung optisch
Inhalt
1 St.
Anzahl
Gesamt
37.471,63 €
zzgl. MwSt.
7,69 €
Nur noch 1 Stück verfügbar
Technische Daten
- Application: Indoor area
- Optical focus: Dynamic focus control or constant focus
- Sensor: CMOS line sensor
- Sensor resolution: 8,192px (200dpi, Standard resolution)
- Line frequency: Max.25kHz
- LensIntegrated
- Focal length: 95mm
- Reading distance: 1,550mm... 3,600mm
- Field of view: 1,200mm (170dpi) 1,035mm (200dpi)
- Code resolution: 0.1mm
- Operating mode: Forward, backward, start/stop
- Further functions: Extended analysis of code quality, empty tote detection, 2D dimensioning (imagebased calculation of object dimensions)
- LensIntegrated
- Focal length: 95mm
- Connection type: 3x M12, 8pin female connector, Xcoded, CAT 6A (Ethernet 1... 1x M12, 12pin female connector, Acoded (I/O) 1x M12, 5pin female connector (CAN Out) 1x M12, 5pin male connector, Acoded (CAN In) 1x M12, 8pin female connector (Light 1x M12, 5pin female connector, Lcoded (PWR Out) 1x M12, 5pin male connector, Lcoded (PWR In)
- Supply voltage 24VDC, 10 % +20 %
- Power consumption: Typ.50W, 55W
- Battery: Type: TL2450 cell (1/10C cell), soldered, nonrechargeable Chemical system: Lithium thionyl chloride (LiSOCl Lithium quantity: 0.2g
- Current consumption: 10A
- Housing material: Aluminum die cast
- Housing color: Light blue (RAL 501
- Enclosure rating: IP65 (EN60529:199110 / A2:200002 / A3:201
- Protection class: III (EN61140)
- Electrical safety: EN610101:201010
- Weight: Approx.11kg

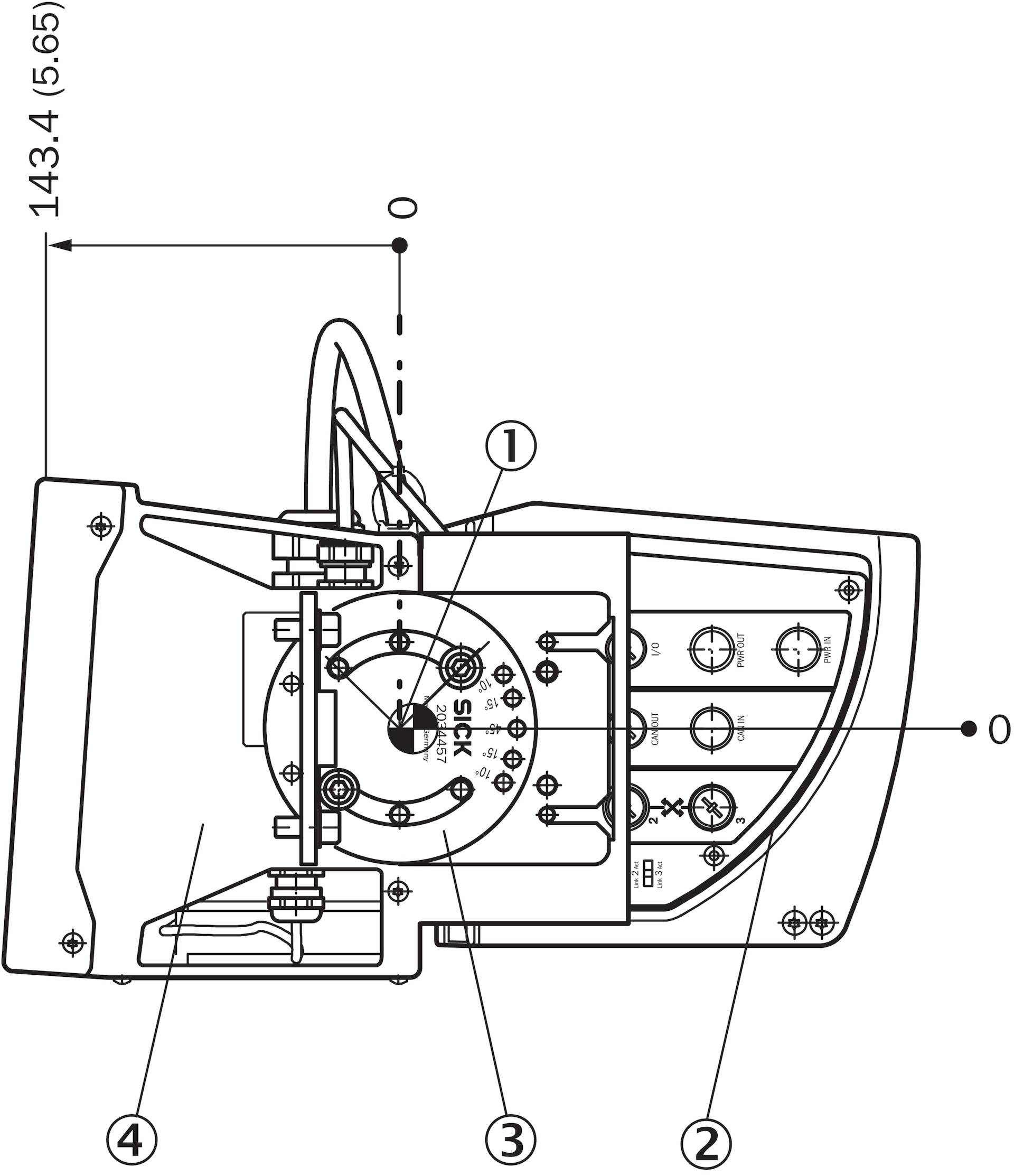

- Dimensions (Lx Wx H): 486.6mmx 300mmx 179mm
- MTBF: 120,000h
- MTTR: 10min
- Readable code structures: 1D codes, 2D codes, Stacked
- Barcode types: Min. one 1D code and max. one 2D code simultaneously., GS1128 / EAN 128, UPC / GTIN / EAN, Interleaved 2of 5, Pharmacode, GS1 DataBar, Code 39, Code 128, Codabar, Code 32, Code 93, postal codes
- 2D code types: Min. one 1D code and max. one 2D code simultaneously., Data Matrix ECC200, GS1 DataMatrix, MaxiCode, QR code, Aztec, PDF417
- Skew angle: 75
- Transport speed: 4.5m/s
- Minimum object distance: ≥50mm
- Image type: JPEG, TIFF, BMP
- Image output: Up to 4(s)FTP clients, AWS S3 client, FTP Server, Samba Server, REST Server
- Ethernet: ( , TCP/IP
- Function: FTP, realtime image output
- Data transmission rate: 1Gbit/s
- CAN (
- Remark: CSN (SICK CAN Sensor Network)
- Function: 1x CAN In, 1x CAN Out
- Data transmission rate: 20kbit/s... 500Mbit/s
- Optical indicators: 3LED (device status displays) 3double LED (ethernet status displays)
- Configuration software: SOPAS ET
- Memory card: 1x 2.5inch SSD (image and data logging), 1x microSD memory card (configuration data backup)
- Ethernet: ( , TCP/IP
- Function: FTP, realtime image output
- Data transmission rate: 1Gbit/s
- CAN (
- Remark: CSN (SICK CAN Sensor Network)
- Function: 1x CAN In, 1x CAN Out
- Data transmission rate: 20kbit/s... 500Mbit/s
- Electromagnetic compatibility (EMC): IEC6100064:2018 / IEC6100062:2019
- Vibration resistance: IEC6006826:200712
- Shock resistance: IEC60068227:200802
- Ambient operating temperature: 10C... +50C
- Storage temperature: 20C... +70C
- Permissible relative humidity: 95%, Noncondensing
- Ambient light immunity: 2,000lx, on code
- Contamination rating: 2(EN61010
- Altitude (above sea level): 2,000m
- EU declaration of conformity
- UK declaration of conformity
- ACMA declaration of conformity
- ChinaRoHS
- BIS registration:
- UN38.3 Test Summary Report:
- ECLASS 5.0: 27280103
- ECLASS 5.1.4: 27280103
- ECLASS 6.0: 27280103
- ECLASS 6.2: 27280103
- ECLASS 7.0: 27280103
- ECLASS 8.0: 27280103
- ECLASS 8.1: 27280103
- ECLASS 9.0: 27280103
- ECLASS 10.0: 27280103
- ECLASS 11.0: 27280103
- ECLASS 12.0: 27280103
- ETIM 5.0: EC002550
- ETIM 6.0: EC002550
- ETIM 7.0: EC002999
- ETIM 8.0: EC002999
- UNSPSC 16.0901: 43211701
