Sick KUP-1010-WSS, Schaftadaption, P/n: 5350421
Hst.-Teile-Nr.:
Bestell-Nr.:
Typ
KUP-1010-WSS
Inhalt
1 St.
Technische Daten

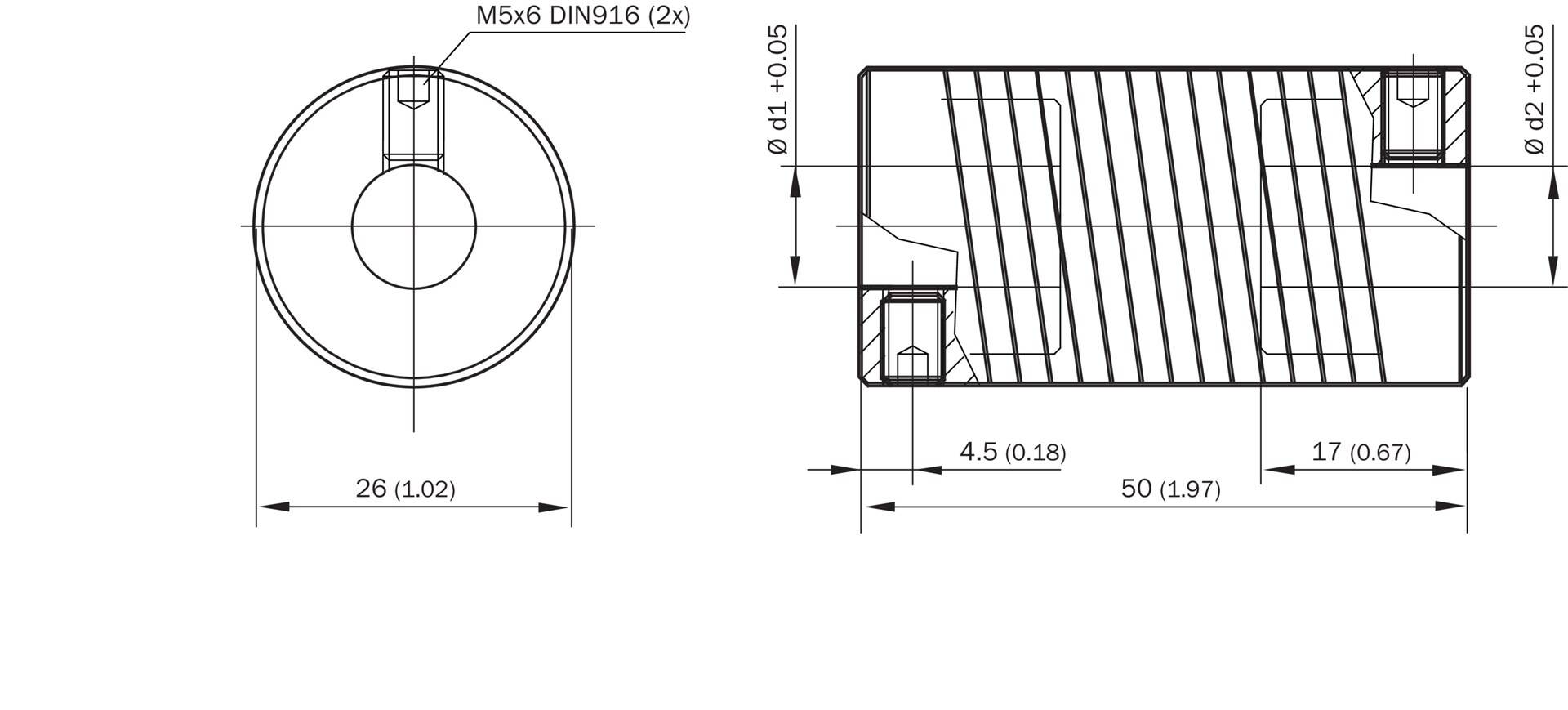

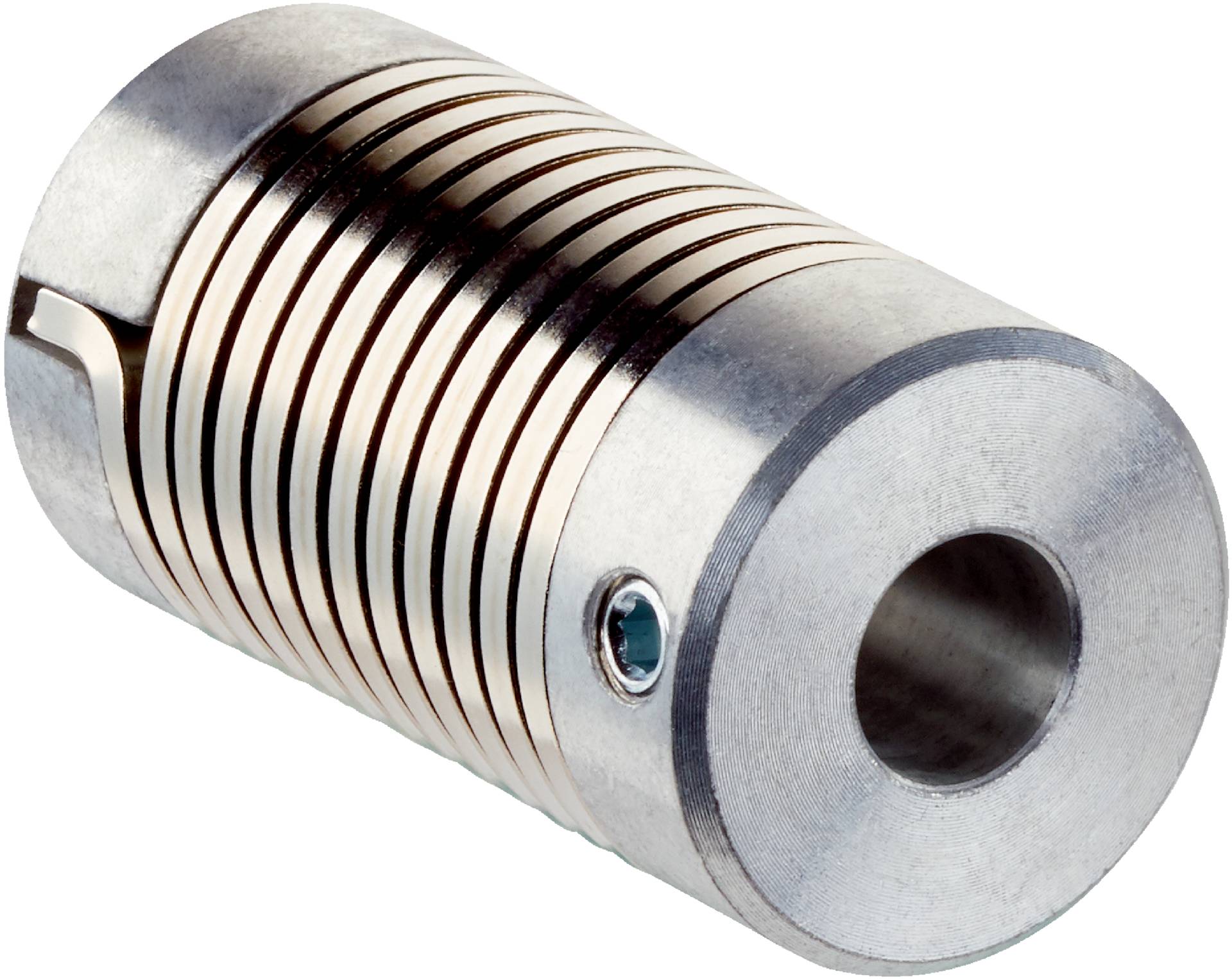

- Description: Spring coupling, shaft diameter 10mm/10mm, maximum shaft offset: radial +/ 1.5mm, axial +/ 1.0mm, angular +/ 5, max. speed 3,000rpm, 40 to +120Celsius, nominal torque 300Ncm, rotational angle at half nominal torque,
- direction of rotation right viewed on driving shaft 40, left viewed on driving shaft 60, material: spring steel 1.1200nickel plated, hubs made of stainless steel 1.4305
- Specialty: Maximum shaft offset: radial +/ 1.5mm, axial +/ 1.0mm, angular +/ 5; max. speed 3,000rpm, 40 to +120Celsius, max. nominal torque 300Ncm; material: spring steel 1.1200nickel plated, hubs made of stainless steel 1.4305
- ECLASS 5.0: 23031090
- ECLASS 5.1.4: 23031090
- ECLASS 6.0: 23031090
- ECLASS 6.2: 23031090
- ECLASS 7.0: 23031090
- ECLASS 8.0: 23031090
- ECLASS 8.1: 23031090
- ECLASS 9.0: 23031090
- ECLASS 10.0: 23031090
- ECLASS 11.0: 23031090
- ECLASS 12.0: 23031090
- UNSPSC 16.0901: 31163014
- Typ
KUP-1010-WSS
- Inhalt
1 St.
