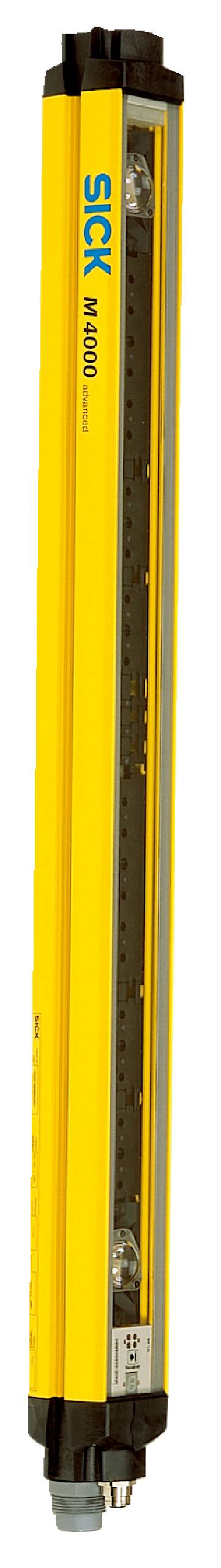

Sick M40Z-025023RB0 Mehrstrahl Si-Licht- schranke A/P Adv. 2/500mm 1200126
EAN:
Hst.-Teile-Nr.:
Bestell-Nr.:
Produkt-Art
Sicherheits-Lichtschranke
Höhe
55.5 mm
Typ
M40Z-025023RB0
Besonderheiten
EDM
Betriebsspannung
24 V/DC
Anzahl
Gesamt
2.030,62 €
zzgl. MwSt.
7,69 €
Nur noch 3 Stück verfügbar
Technische Daten
- Scanning range: 0.5m... 7.5m
- Number of beams: 2
- Beam separation: 500mm
- Response time: 10ms
- Synchronization: Optical synchronisation
- End cap with integrated LED:
- Type: Type 4(IEC61496
- Safety integrity level: SIL 3(IEC6150
- Category: Category 4ENISO1384
- Performance level: PLeENISO1384
- PFH D (mean probability of a dangerous failure per hour): 6.6x10 9 ENISO1384
- T M (mission time): 20years ENISO1384
- Safe state in the event of a fault: At least one OSSD is in the OFF state.
- Functions Delivery status Beam coding: : Uncoded
- Restart interlock: : Internal
- External device monitoring (EDM): : Activated
- Configurable application diagnostic output: : Contamination (OWS)
- Safe SICK device communication via EFI:
- Differentiation between man and material (muting):
- Type of humanmaterial differentiation: Flexible, configurable 4signal muting
- Differentiation between man and material (muting):
- Type of humanmaterial differentiation: Flexible, configurable 4signal muting
- System connection: Hirschmann male connector M26, 12pin
- Permitted cable length: 50m
- Permitted crosssection: ≥0.75mm
- Configuration connection: Female connector M8, 4pin
- Configuration method: PC with CDS (Configuration and Diagnostic Software)
- Display elements: LEDs 7segment display
- End cap with integrated LED:
- System connection: Hirschmann male connector M26, 12pin
- Permitted cable length: 50m
- Permitted crosssection: ≥0.75mm
- Configuration method: PC with CDS (Configuration and Diagnostic Software)
- Protection class: III (IEC61140)
- Supply voltage V S : 24VDC (19.2VDC... 28.8VDC)
- Residual ripple: 10%
- Power consumption: 0.6A
- Output signal switching devices (OSSDs): 2PNP semiconductors, shortcircuit protected, crosscircuit monitored
- ON state, switching voltage HIGH: 24VDC (V S 2.25VDC... V S )
- OFF state, switching voltage LOW: 2VDC
- Currentcarrying capacity per OSSD: 500mA
- Output signal switching devices (OSSDs): 2PNP semiconductors, shortcircuit protected, crosscircuit monitored
- ON state, switching voltage HIGH: 24VDC (V S 2.25VDC... V S )
- OFF state, switching voltage LOW: 2VDC
- Currentcarrying capacity per OSSD: 500mA
- Dimensions: See dimensional drawing
- Housing crosssection: 52mmx 55.5mm
- Material:
- Housing: Aluminum alloy ALMGSI 0.5, powder coated
- Front screen: Polycarbonate, scratchresistant coating
- Material:
- Housing: Aluminum alloy ALMGSI 0.5, powder coated
- Front screen: Polycarbonate, scratchresistant coating
- Enclosure rating: IP65 (EN6052
- Ambient operating temperature: 30C... +55C
- Storage temperature: 30C... +70C
- Air humidity: 15%... 95%, Noncondensing
- Shock resistance: 10g, 16ms (IEC6006822
- Wave length: 850nm
- ECLASS 5.0: 27272703
- ECLASS 5.1.4: 27272703
- ECLASS 6.0: 27272703
- ECLASS 6.2: 27272703
- ECLASS 7.0: 27272703
- ECLASS 8.0: 27272703
- ECLASS 8.1: 27272703
- ECLASS 9.0: 27272703
- ECLASS 10.0: 27272703
- ECLASS 11.0: 27272703
- ECLASS 12.0: 27272703
- ETIM 5.0: EC001832
- ETIM 6.0: EC001832
- ETIM 7.0: EC001832
- ETIM 8.0: EC001832
- UNSPSC 16.0901: 46171620
- Produkt-Art
Sicherheits-Lichtschranke
- Typ
M40Z-025023RB0
- Besonderheiten
EDM
- Betriebsspannung
24 V/DC
- Max. Stromaufnahme
0.6 A
- Ansprechzeit
10 ms
- Schaltspannung (max.)
24 V/DC
- Kleinstes zu erkennendes Objekt (Durchmesser)
500 mm
- Kabellänge
50 m
- Sendertyp
IRED
- Wellenlänge
850 nm
- Reichweite (min.)
0.5 m
- Reichweite (max.)
7.5 m
- Ausgänge
2 x PNP
- Ausgangsstrom
500 mA
- Performance Level
PL e
- Safety Integrity Level
SIL 3
- Sicherheitskategorie
4
- Strahlen
2
- Strahlenabstand
500 mm
- Inhalt
1 St.
- Breite
52 mm
- Höhe
55.5 mm
- Abm.
(B x H) 52 mm x 55.5 mm
- Min. Temperatur
30 °C
- Max. Temperatur
+55 °C
Beschreibung
Sick M40Z-025023RB0 Mehrstrahl Si-Licht- schranke A/P Adv. 2/500mm 1200126 Lieferantenartikelnummer: 1200126EAN: 4047084108815
