Sick Messrad-Encoder MWS120-12N2EF18x12 kaufen

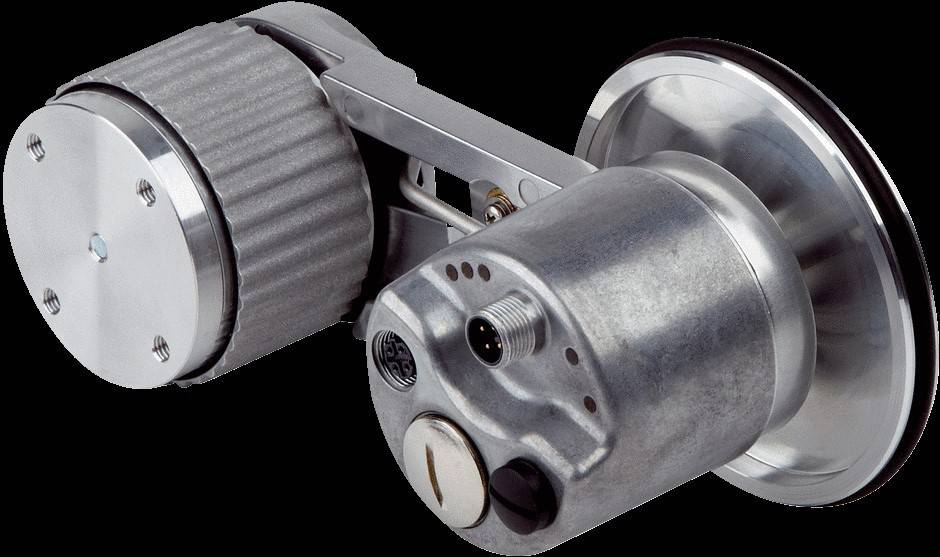

Sick Messrad-Encoder MWS120-12N2EF18x12-0

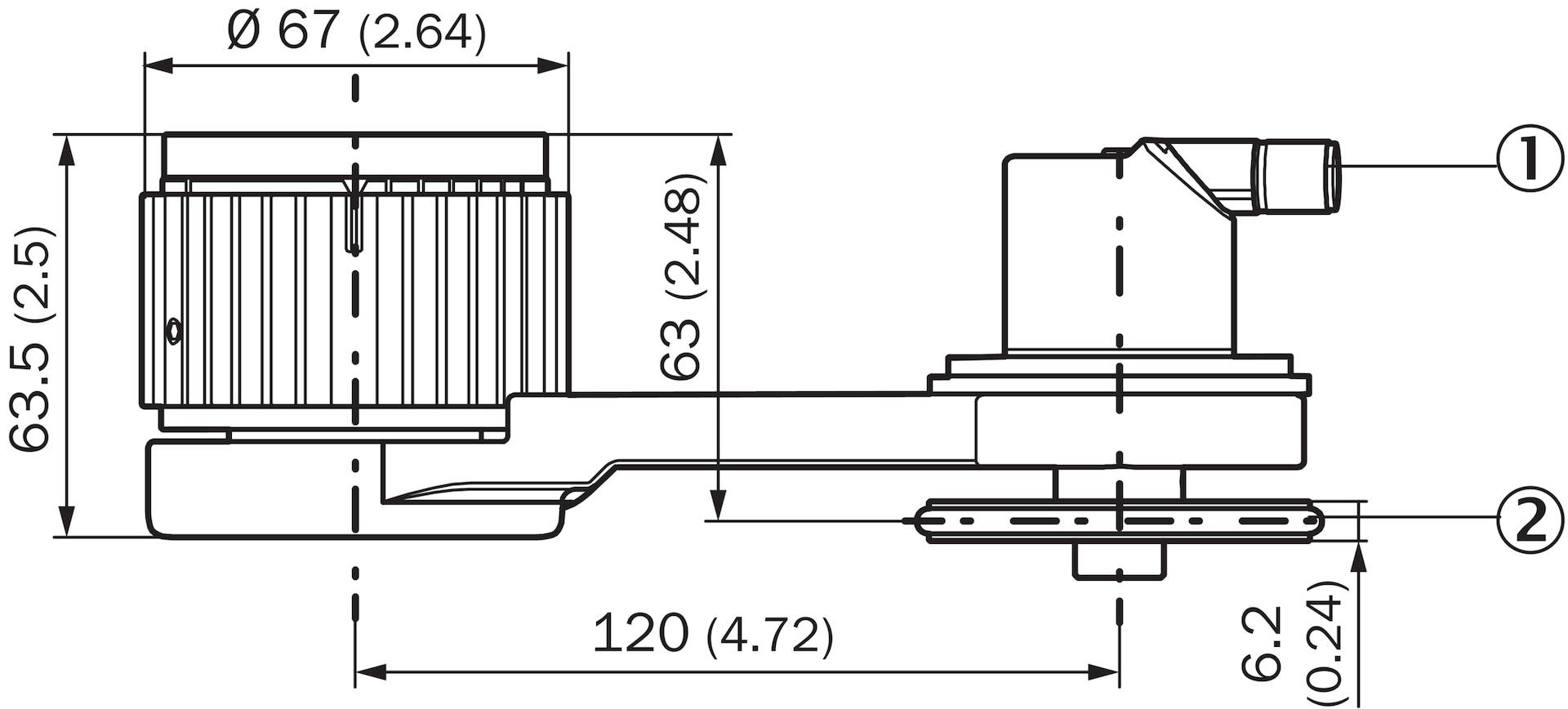

Sick Messrad-Encoder MWS120-12N2EF18x12-1

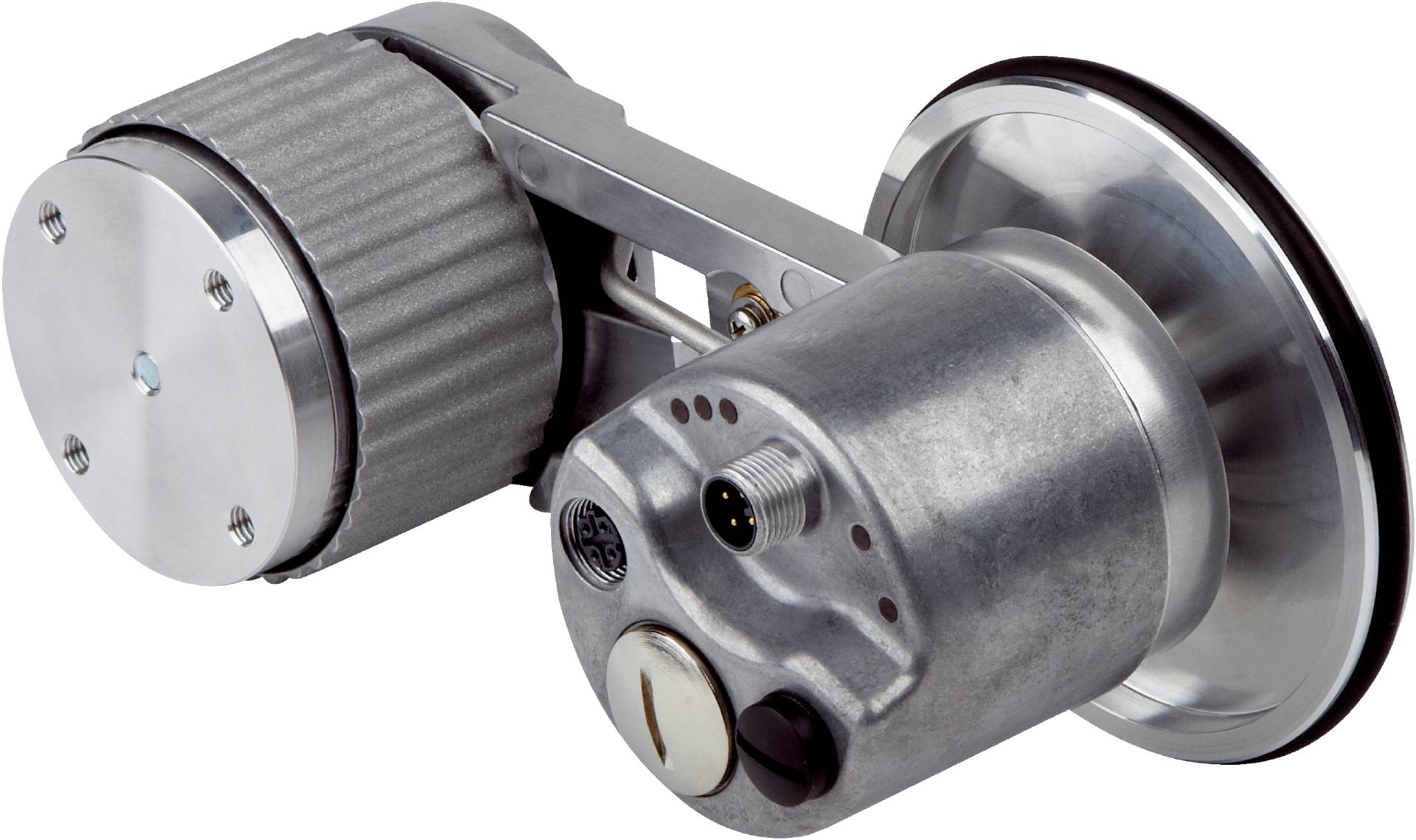

Sick Messrad-Encoder MWS120-12N2EF18x12-2

1/3

Produkt-Art

Messrad-Encoder

Typ

1115089

UKCA

nicht relevant

Lieferung Mo., 23. Nov. 2026

20 Stück

Neu

Rechnungsstellung für alle Partner-Artikel jetzt direkt durch Conrad

Anzahl

Stück

Gesamt

1.842,34 €

zzgl. MwSt.

Kostenfreier Versand

14 Tage Rückgaberecht inklusive

Rechtliche Bedenken melden

Umwelt & Entsorgung (Elektrogeräte, Batterien, Verpackungen)

Technische Daten

MTTF D (mean time to dangerous failure): 80years ENISO13849
Max. resolution (number of steps per revolutionx number of revolutions): 18bitx 12bit (262,144x 4,09
Measuring increment (resolution in mm/pulse): 0.0008
Repeatability: 0.1mm
Communication interface: EtherCAT ®
Communication Interface detail: CoE (CAN over EtherCAT®)
Programmable/configurable:
Connection type: Male connector, Female connector, 1x, 2x, M12, M12, 4pin, 4pin, axial, axial
Supply voltage 10VDC... 30VDC
Reverse polarity protection:
Measuring wheel circumference: 200mm
Measuring wheel surface: Oring NBR70
Mounting: Measuring wheel mounted at the front
Spring arm mechanism material:
Spring element: Stainless steel
Measuring wheel, spring arm: Aluminum
Start up torque: 0.5Ncm
Operating torque: 0.3Ncm
Bearing lifetime: 3.0x 10^9 revolutions
Minimum spring tension force: 4N
Max. permissible working area for the spring (continuous operation): 10mm
Service life of spring element: >1.5million cycles
Mounting position relative to the measuring object: Preferably from above, from below possible
Mounted encoder: AFM60 EtherCAT®, AFM60AS4EB018x12, 1059060
Mounted mechanic: BEFMWS120ARM, 2118239
Attached measuring wheel: BEFMR010020R, 2055224
Spring arm mechanism material:
Spring element: Stainless steel
Measuring wheel, spring arm: Aluminum
EMC: According to EN6100062 and EN6100063
Operating temperature range: 30C... +80C
Storage temperature range: 40C... +100C
EU declaration of conformity
UK declaration of conformity
ACMA declaration of conformity
ChinaRoHS
EAC certificate / DoC
ECLASS 5.0: 27270501
ECLASS 5.1.4: 27270501
ECLASS 6.0: 27270590
ECLASS 6.2: 27270590
ECLASS 7.0: 27270501
ECLASS 8.0: 27270501
ECLASS 8.1: 27270501
ECLASS 9.0: 27270501
ECLASS 10.0: 27270790
ECLASS 11.0: 27270707
ECLASS 12.0: 27270504
ETIM 5.0: EC001486
ETIM 6.0: EC001486
ETIM 7.0: EC001486
ETIM 8.0: EC001486
UNSPSC 16.0901: 41112113

Produkt-Art: Messrad-Encoder

Typ: 1115089

UKCA: nicht relevant

Beschreibung

Sick Messrad-Encoder MWS120-12N2EF18x12

Abbildung ähnlich.
Bitte achten Sie auf die technischen Daten und die EAN des Produkts.

Hersteller:SickBezeichnung:Messrad-Encoder Typ:MWS120-12N2EF18x12Standard für Schnittstellen:EthernetAnzahl der Umdrehungen:4096Programmierbar:ja
Sick Messrad-Encoder MWS120-12N2EF18x12: weitere Details
Messrad-Encoder, MWS120, MWS120-12N2EF18x12, Messradumfang: 200 mm, Messradoberfläche: O-Ring NBR70, Kommunikationsschnittstelle: 10 V DC ... 30 V DC, EtherCAT®, CoE (CAN over EtherCAT®), Versorgungsspannung: 10 V DC ... 30 V DC, Angebauter Encoder: AFM60 EtherCAT®, AFM60A-S4EB018x12, 1059060, Anschlussart: Stecker, 1x, M12, 4-polig, axialDose, 2x, M12, 4-polig, axial EAN: 4047084475283

Geliefert wird: Sick Messrad-Encoder MWS120-12N2EF18x12, Verpackungseinheit: 1 Stk., EAN: 4047084475283

Lieferumfang

Geliefert wird: Sick Messrad-Encoder MWS120-12N2EF18x12, Verpackungseinheit: 1 Stk., EAN: 4047084475283
