Sick Säule für Lichtvorhang PM3C13-00030000 kaufen

1/2

Produkt-Art

Säule

Typ

PM3C13-00030000

Inhalt

1 St.

Lieferung Mi., 9. Sept.

7 Stück

Verkauf und Versand:

Stück

Gesamt

1.113,36 €

zzgl. MwSt.

7,69 €

Nur noch 7 Stück verfügbar

Technische Daten

Description: PM3 mirror column with fixed mirror for beam deflection. Allows multisided access protection.
Mounting system type: Mechanical anchoring to the floor
Items supplied: PM3 mirror column with preassembled base plate
Column height: 1,281.5mm
Mirror height: 1,082mm
Suitable for device variants:
deTec safety light curtain: Protective field height 1,050mm
C2000, C4000, M4000 Curtain safety light curtain: Protective field height 1,050mm
deTem safety lightbeam sensor: Any
M2000, M4000 safety lightbeam sensor: Any
Suitable for device variants:
deTec safety light curtain: Protective field height 1,050mm
C2000, C4000, M4000 Curtain safety light curtain: Protective field height 1,050mm
deTem safety lightbeam sensor: Any
M2000, M4000 safety lightbeam sensor: Any

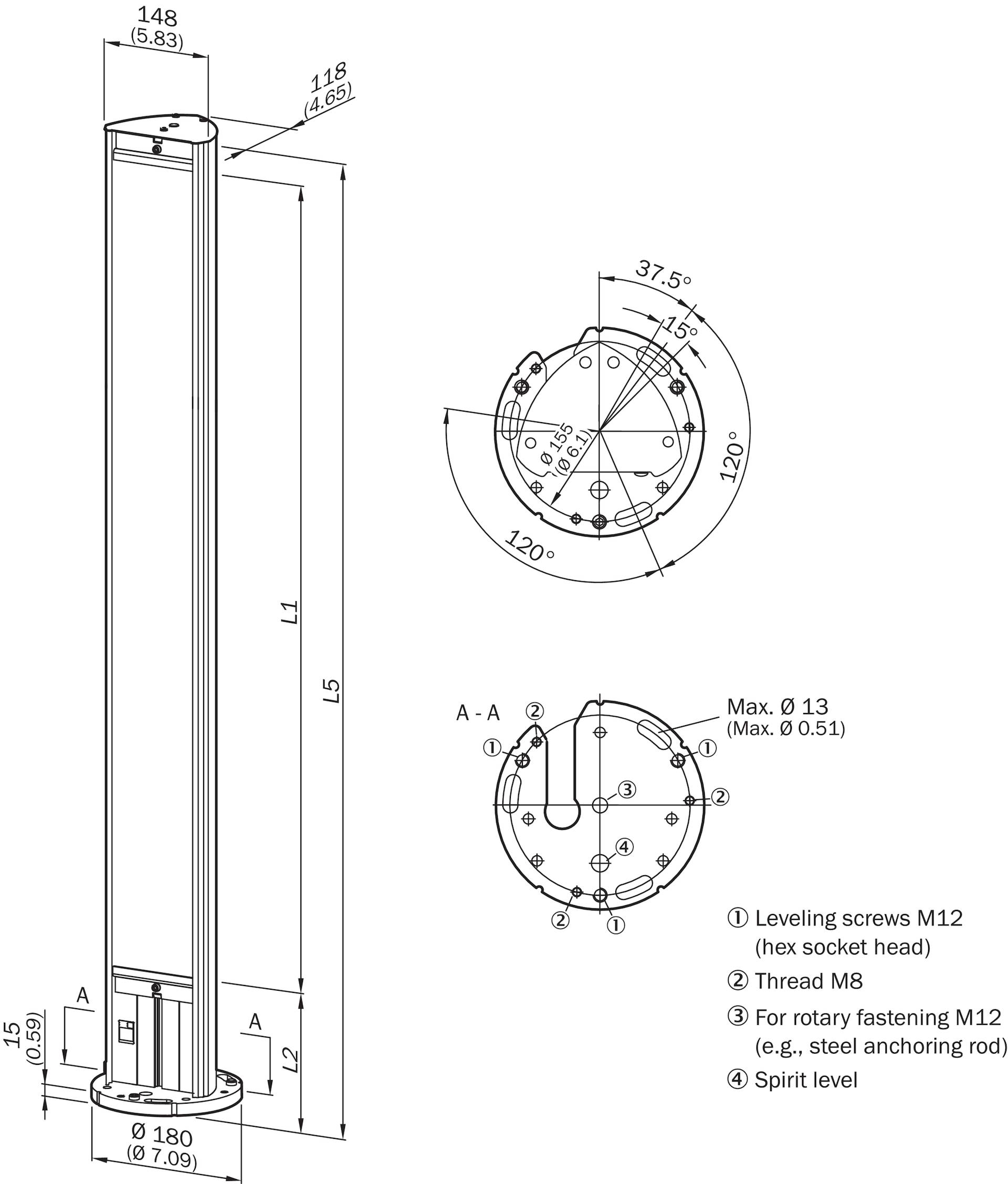

Dimensions: See dimensional drawing
L1: 1,082mm
L2: 160mm
L5: 1,281.5mm
Crosssection of column profile: 148mmx 118mm
Diameter of base plate: 180mm
Weight: 9.33kg
Dimensions: See dimensional drawing
L1: 1,082mm
L2: 160mm
L5: 1,281.5mm
Crosssection of column profile: 148mmx 118mm
Diameter of base plate: 180mm
Weight: 9.33kg
Dimensions (Wx Hx L): 1,281.5mm
Housing color: Yellow
ECLASS 5.0: 27279203
ECLASS 5.1.4: 27279203
ECLASS 6.0: 27279203
ECLASS 6.2: 27279203
ECLASS 7.0: 27279203
ECLASS 8.0: 27279203
ECLASS 8.1: 27279203
ECLASS 9.0: 27273601
ECLASS 10.0: 27273601
ECLASS 11.0: 27273601
ECLASS 12.0: 27273601
ETIM 5.0: EC002467
ETIM 6.0: EC002467
ETIM 7.0: EC002467
ETIM 8.0: EC002467
UNSPSC 16.0901: 39111609
