Sick Sicherheitslaserscanner MICS3-ACAZ55LZ1P01 kaufen

Sick Sicherheitslaserscanner MICS3-ACAZ55LZ1P01-0

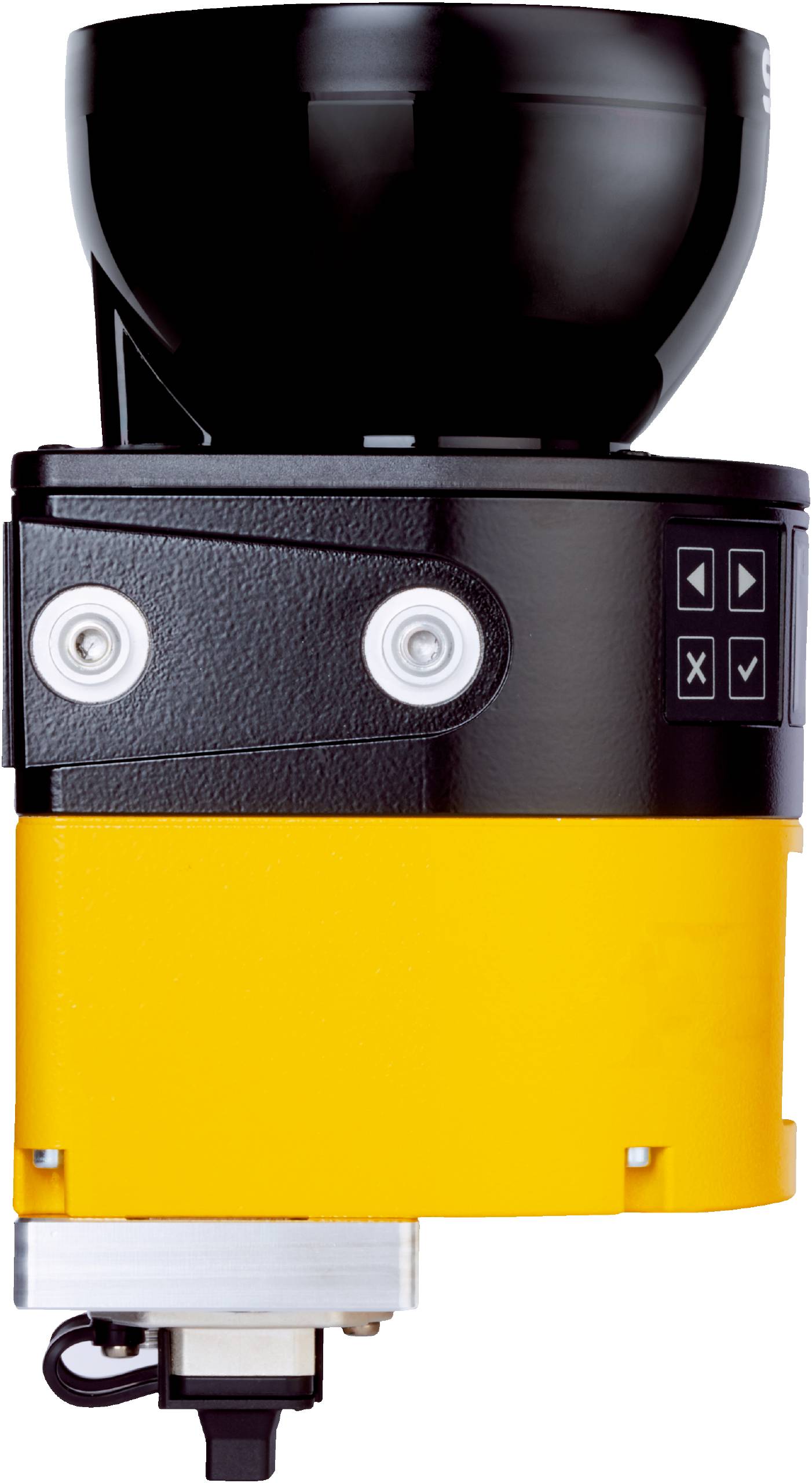

Sick Sicherheitslaserscanner MICS3-ACAZ55LZ1P01-1

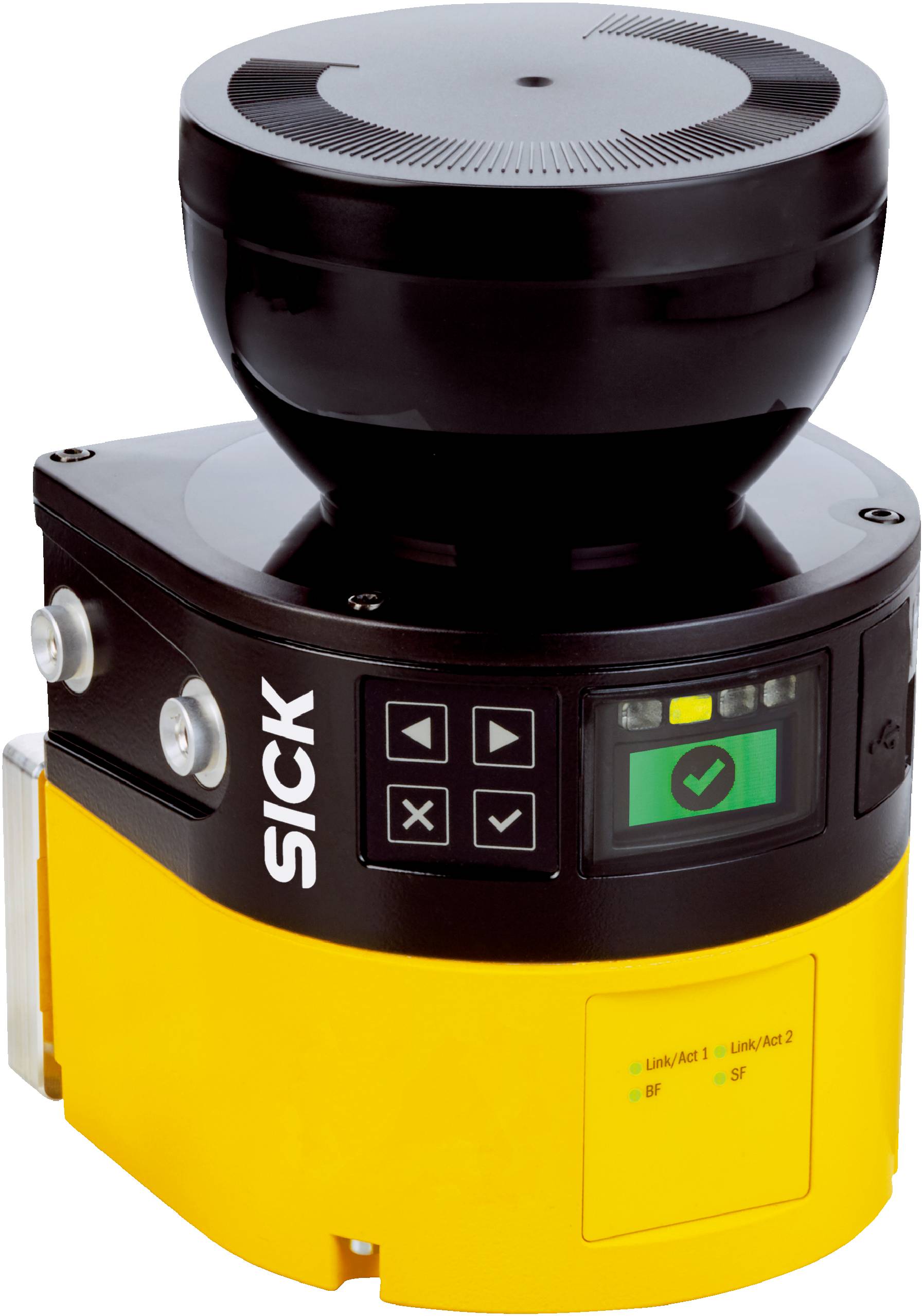

Sick Sicherheitslaserscanner MICS3-ACAZ55LZ1P01-2

1/3

Produkt-Art

Sicherheits-Laserscanner

Typ

1100386

Inhalt

1 St.

UKCA

nicht relevant

Lieferung Fr., 25. Sept.

1 Stück

Verkauf und Versand:

FAMAGA GROUP GmbH & Co. KG AGB

Anzahl

Stück

Gesamt

10.248,00 €

zzgl. MwSt.

7,69 €

Nur noch 1 Stück verfügbar

Sie haben bereits das beste Angebot für Ihre Menge.

Die optimale Auswahl für die eingegebene Menge wird automatisch berechnet, inklusive Preis (exkl. Versand) und Lieferzeit.

Rechtliche Bedenken melden

Umwelt & Entsorgung (Elektrogeräte, Batterien, Verpackungen)

Technische Daten

Sub product family: microScan3 Core PROFINET
Model: Sensor including system plug (premounted on the underside)
Application: Indoor
Protective field range: 5.5m
Warning field range: 40m
Number of simultaneously monitored fields: 4
Number of fields: 8
Number of monitoring cases: 8
Scanning angle: 275
Resolution (can be configured): 30mm 40mm 50mm 70mm 150mm 200mm
Angular resolution: 0.39
Response time: 95ms
Protective field supplement: 65mm
Type: Type 3(IEC6149
Safety integrity level: SIL 2(IEC6150
Category: Category 3ENISO1384
Performance level: PLdENISO1384
PFH D (mean probability of a dangerous failure per hour): 8.0x10 8
T M (mission time): 20years ENISO1384
Safe state in the event of a fault: The safety outputs via the network are logic 0.
Restart interlock:
Multiple sampling:
Monitoring case switching
Simultaneous monitoring:
Static protective field switching
Safe contour detection:
Contour as a reference:
Integrated configuration memory:
Measured data output: Via Ethernet
Connection type:
Voltage supply: 1x male connector, M12, 5pin, Lcoded
Fieldbus, industrial network: 2x SCRJ female connector for pushpull male connector (optical fibers)
Outputs:
OSSD pairs: 0
Safety outputs via network: 4
Configuration method: PC with Safety Designer (Configuration and Diagnostic Software)
Configuration and diagnostics interface: USB 2.0, MiniUSB, Ethernet
Fieldbus, industrial network: PROFINET
Protocol: PROFIsafe
Supported protocol versions: PROFINET specification V2.3
: PROFIsafe profile in accordance with specification V2.6.1
: PROFIsafe profile in accordance with specification V2.4
GSDML: According to GSDML specification V2.33
Cycle time: 1ms, 2ms, 4ms, 8ms, 16ms …
Conformance: Conformance Class C
Network management: SNMP
: MIB2
: LLDP in accordance with IEEE 802.1AB
: MRP client support
Net load: Net load class III in accordance with security level 1test
Switch properties: 2port realtime switch compliant with IEEE 802
Port properties: 100BASEPOF
Diagnostics: I&M data sets 0… 5
: PROFINET alarms
: Diagnostics of attenuation via POF
Additional services: PROFIenergy
: F_iPar_CRC
: Acyclic read/write services for communication via TCI
: SNTP (client and server)
Additional interfaces: TCP/IPcommunication via port 9000
Display elements: Graphic color display, LEDs
Connection type:
Voltage supply: 1x male connector, M12, 5pin, Lcoded
Fieldbus, industrial network: 2x SCRJ female connector for pushpull male connector (optical fibers)
Outputs:
OSSD pairs: 0
Safety outputs via network: 4
Configuration and diagnostics interface: USB 2.0, MiniUSB, Ethernet
Fieldbus, industrial network: PROFINET
Protocol: PROFIsafe
Supported protocol versions: PROFINET specification V2.3
: PROFIsafe profile in accordance with specification V2.6.1
: PROFIsafe profile in accordance with specification V2.4
GSDML: According to GSDML specification V2.33
Cycle time: 1ms, 2ms, 4ms, 8ms, 16ms …
Conformance: Conformance Class C
Network management: SNMP
: MIB2
: LLDP in accordance with IEEE 802.1AB
: MRP client support
Net load: Net load class III in accordance with security level 1test
Switch properties: 2port realtime switch compliant with IEEE 802
Port properties: 100BASEPOF
Diagnostics: I&M data sets 0… 5
: PROFINET alarms
: Diagnostics of attenuation via POF
Additional services: PROFIenergy
: F_iPar_CRC
: Acyclic read/write services for communication via TCI
: SNTP (client and server)
Additional interfaces: TCP/IPcommunication via port 9000
Protection class: III (EN61140)
Supply voltage V s : 24VDC (16.8VDC... 30VDC)
Power consumption typical: 8.4W
Dimensions (Wx Hx D): 112mmx 163.1mmx 111.1mm (without system plug)
Weight: 1.65kg
Housing material: Aluminum
Housing color: RAL 1021(yellow), RAL 9005(black)
Optics cover material: Polycarbonate
Optics cover surface finish: Outside with scratchresistant coating
Enclosure rating: IP65 (IEC6052
Ambient light immunity: 3,000lx (IEC61496
Ambient operating temperature: 10C... +50C
Storage temperature: 25C... +70C
Vibration resistance: IEC6006826, IEC60068264, IEC6072135, IECTR 6072143, IEC614961, IEC614963
Class: 5M1 (IEC607213
: 3M4 (IECTR 607214
Shock resistance: IEC60068227, IEC6072135, IECTR 6072143, IEC614961, IEC614963
Class: 5M1 (IEC607213
: 3M4 (IECTR 607214
Continuous shock: 100m/s, 16ms
: 150m/s, 6ms
EMC: IEC614961, IEC6100062, IEC6100064
Ambient light immunity: 3,000lx (IEC61496
Vibration resistance: IEC6006826, IEC60068264, IEC6072135, IECTR 6072143, IEC614961, IEC614963
Class: 5M1 (IEC607213
: 3M4 (IECTR 607214
Shock resistance: IEC60068227, IEC6072135, IECTR 6072143, IEC614961, IEC614963
Class: 5M1 (IEC607213
: 3M4 (IECTR 607214
Continuous shock: 100m/s, 16ms
: 150m/s, 6ms
Type of light: Pulsed laser diode
Wave length: 845nm
Detectable remission factor: 1.8% to several 1000%
Laser class: 1(21CFR 1040.10and 1040.11, IEC60825
EU declaration of conformity
UK declaration of conformity
ACMA declaration of conformity
ChinaRoHS
China GB Certificate
cULus Certificate
Profinet Certificate
PROFIsafe Certificate
ECTypeExamination approval
PROFIenergy Certificate
ECLASS 5.0: 27272705
ECLASS 5.1.4: 27272705
ECLASS 6.0: 27272705
ECLASS 6.2: 27272705
ECLASS 7.0: 27272705
ECLASS 8.0: 27272705
ECLASS 8.1: 27272705
ECLASS 9.0: 27272705
ECLASS 10.0: 27272705
ECLASS 11.0: 27272705
ECLASS 12.0: 27272705
ETIM 5.0: EC002550
ETIM 6.0: EC002550
ETIM 7.0: EC002550
ETIM 8.0: EC002550
UNSPSC 16.0901: 39121528

Produkt-Art: Sicherheits-Laserscanner

Typ: 1100386

Inhalt: 1 St.

UKCA: nicht relevant

Beschreibung

Sick Sicherheitslaserscanner MICS3-ACAZ55LZ1P01

Abbildung ähnlich.
Bitte achten Sie auf die technischen Daten und die EAN des Produkts.

Hersteller:SickBezeichnung:Sicherheitslaserscanner Typ:MICS3-ACAZ55LZ1P01Ausführung der Schnittstelle für sicherheitsgerichtete Kommunikation:sonstigeBetriebsmittel-Schutzklasse:Schutzklasse 3Breite des Sensors:112 mmHöhe des Sensors:163,1 mmLänge des Sensors:111,1 mmLaserschutzklasse:Klasse 1Scanwinkel:275 °Sicherheitstyp nach IEC 61496-1:3Mit Wiederanlaufsperre:ja
Sick Sicherheitslaserscanner MICS3-ACAZ55LZ1P01: weitere Details
Sicherheitslaserscanner, microScan3, MICS3-ACAZ55LZ1P01, Unterproduktfamilie: microScan3 Core PROFINET, Ausführung: Sensor inklusive Systemstecker (auf der Unterseite vormontiert), Integration in die Steuerung: PROFINET PROFIsafe, Schutzfeldreichweite: 5.5 m, Scanwinkel: 275°, Anzahl Felder: 8, Anschlussart: SCRJ Push-Pull AIDA EAN: 4047084455674

Geliefert wird: Sick Sicherheitslaserscanner MICS3-ACAZ55LZ1P01, Verpackungseinheit: 1 Stk., EAN: 4047084455674

Lieferumfang

Geliefert wird: Sick Sicherheitslaserscanner MICS3-ACAZ55LZ1P01, Verpackungseinheit: 1 Stk., EAN: 4047084455674
