Sick SKM36-HVV0-K02, Motor-Feedback-System, P/n: 1035602 kaufen

Sick SKM36-HVV0-K02, Motor-Feedback-System, P/n: 1035602-0

Sick SKM36-HVV0-K02, Motor-Feedback-System, P/n: 1035602-1

Sick SKM36-HVV0-K02, Motor-Feedback-System, P/n: 1035602-2

1/3

Produkt-Art

Inkremental-Encoder

Typ

SKM36-HVV0-K02

UKCA

Lieferung Mo., 23. Nov. 2026

20 Stück

Neu

Rechnungsstellung für alle Partner-Artikel jetzt direkt durch Conrad

Anzahl

Stück

Gesamt

644,80 €

zzgl. MwSt.

Kostenfreier Versand

14 Tage Rückgaberecht inklusive

Rechtliche Bedenken melden

Umwelt & Entsorgung (Elektrogeräte, Batterien, Verpackungen)

Technische Daten

MTTF D (mean time to dangerous failure): 205years ENISO1384
Sine/cosine periods per revolution128
Number of the absolute ascertainable revolutions: 4,096
Total number of steps: 16,777,216
Measuring step: 2.5″ For interpolation of the sine/cosine signals with, e.g., 12bits
Integral nonlinearity: 120″, Error limits for evaluating sine/cosine period
Differential nonlinearity: Nonlinearity within a sine/cosine period
Operating speed: 6,000min, up to which the absolute position can be reliably produced
Available memory area: 1,792Byte
System accuracy: 120″
Type of code for the absolute value: Binary
Code sequence: Increasing, when turning the shaft For clockwise rotation, looking in direction A (see dimensional drawing), For clockwise shaft rotation, looking in direction A (see dimensional drawing)
Communication interface: HIPERFACE ®

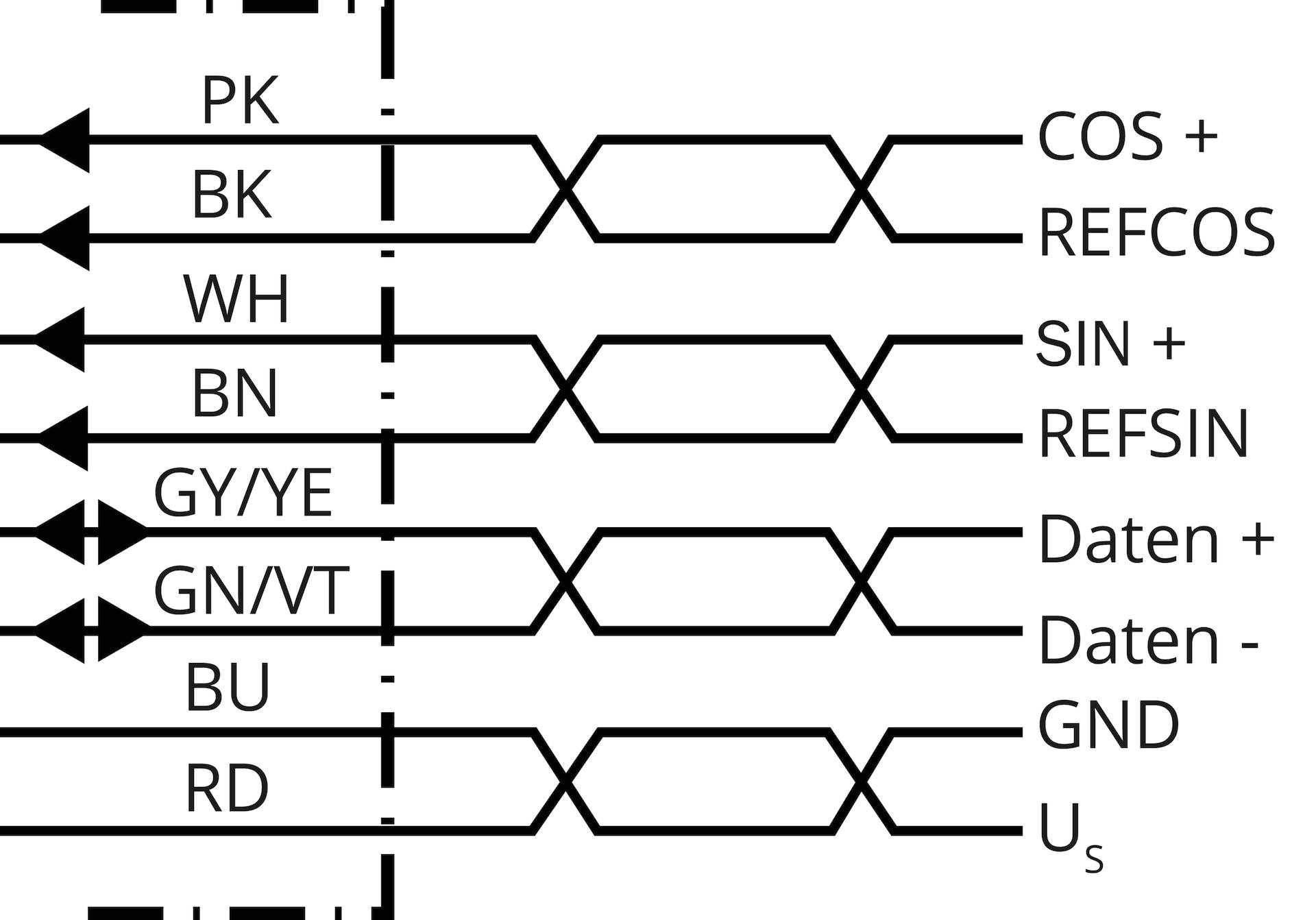

Connection type: Cable, 8wire, 1.5m
Supply voltage 7VDC... 12VDC
Recommended supply voltage 8VDC
Current consumption: 60mA
Output frequency for sine/cosine signals: 65kHz
Shaft version: Solid shaft
Flange type / stator coupling: Servo/face mount flange, stator coupling
Dimensions: See dimensional drawing
Weight: 0.07kg
Moment of inertia of the rotor: 6gcm
Operating speed: 9,000min, 9,000U/min
Angular acceleration: 500,000rad/s
Operating torque: 0.6Ncm
Start up torque: +0.9Ncm
Permissible shaft loading: 10N (radial) 5N (axial)
Life of ball bearings: 2.0x 10^9 revolutions
Operating temperature range: 20C... +100C
Storage temperature range: 40C... +125C, without package
Relative humidity/condensation: 90%, Condensation not permitted
Resistance to shocks: 100g, 6ms, 6ms (according to EN6006822
Frequency range of resistance to vibrations: 50g, 10Hz... 2,000Hz (EN600682
EMC: According to EN6100062 and EN6100063
Enclosure rating: IP50, with mating connector inserted (IEC6052
EU declaration of conformity
UK declaration of conformity
ACMA declaration of conformity
MAR declaration of conformity
ChinaRoHS
cULus Certificate
ECLASS 5.0: 27270590
ECLASS 5.1.4: 27270590
ECLASS 6.0: 27270590
ECLASS 6.2: 27270590
ECLASS 7.0: 27270590
ECLASS 8.0: 27270590
ECLASS 8.1: 27270590
ECLASS 9.0: 27270590
ECLASS 10.0: 27273805
ECLASS 11.0: 27273901
ECLASS 12.0: 27273901
ETIM 5.0: EC001486
ETIM 6.0: EC001486
ETIM 7.0: EC001486
ETIM 8.0: EC001486
UNSPSC 16.0901: 41112113

Produkt-Art: Inkremental-Encoder

Typ: SKM36-HVV0-K02

UKCA: Ja

Beschreibung

Sick Motor-Feedback-System SKM36-HVV0-K02

Abbildung ähnlich.
Bitte achten Sie auf die technischen Daten und die EAN des Produkts.

Hersteller:SickBezeichnung:Motor-Feedback-System rotativTyp:SKM36-HVV0-K02Standard für Schnittstellen:sonstigeProgrammierbar:jaSchutzart (IP):IP50
Sick Motor-Feedback-System SKM36-HVV0-K02: weitere Details
Motor-Feedback-Systeme rotativ HIPERFACE®, SKS/SKM36, SKM36-HVV0-K02, Kommunikationsschnittstelle: HIPERFACE®, Ausführung: Absolut-Multiturn, Bauart: Standalone, Sinus-/Cosinusperioden pro Umdrehung: 128, Sicherheitsgerichtetes System: nein, Mechanische Ausführung: Vollwelle, Servo-/Klemmflansch, Anschlussart: Leitung, 8-adrig, 1,5 m, Technologie: Optisch, Betriebstemperaturbereich: 20 °C ... +100 °C EAN: 4047084271175

Geliefert wird: Sick Motor-Feedback-System rotativ SKM36-HVV0-K02, Verpackungseinheit: 1 Stk., EAN: 4047084271175

Lieferumfang

Geliefert wird: Sick Motor-Feedback-System rotativ SKM36-HVV0-K02, Verpackungseinheit: 1 Stk., EAN: 4047084271175
