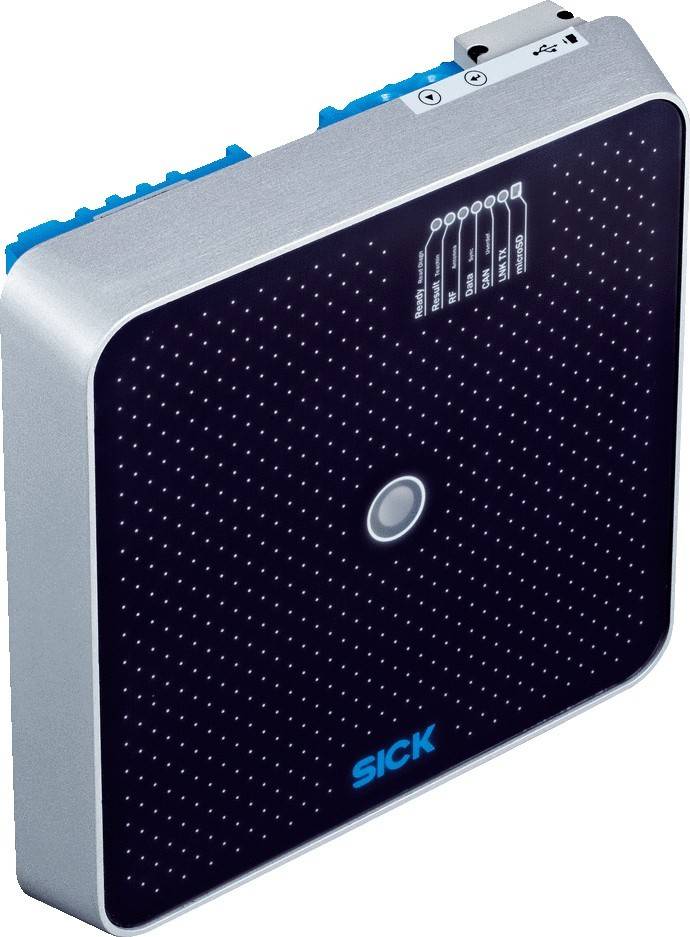

Sick UF RFID Schreib-/Lesegerät RFU630-13100 kaufen

Sick UF RFID Schreib-/Lesegerät RFU630-13100-0

Sick UF RFID Schreib-/Lesegerät RFU630-13100-1

Sick UF RFID Schreib-/Lesegerät RFU630-13100-2

1/3

Typ

1054396

Hersteller

SICK

UKCA

nicht relevant

Lieferung Mi., 23. Sept.

10 Stück

Verkauf und Versand:

SPS Industry AGB

Anzahl

Stück

Gesamt

4.005,11 €

zzgl. MwSt.

6,40 €

Nur noch 10 Stück verfügbar

Sie haben bereits das beste Angebot für Ihre Menge.

Die optimale Auswahl für die eingegebene Menge wird automatisch berechnet, inklusive Preis (exkl. Versand) und Lieferzeit.

Rechtliche Bedenken melden

Umwelt & Entsorgung (Elektrogeräte, Batterien, Verpackungen)

Highlights & Details

Sick RFU630-13100, RFID, P/n: 1054396

RFID-Lesegerät

Technische Daten

Version: Long Range
Product category: RFID read/write device with integrated antenna
Radio approval European Union South Africa Saudi Arabia United Arab Emirates Qatar
Frequency band: UHF (860MHz... 960MHz)
Carrier frequency: 865.7MHz... 867.5MHz
Output power: 2W (ERP, with integrated antenna, alternatively 30dBm at the external antenna port, output power adjustable)
RFID standard: EPCglobal UHF Class 1Generation 2, ISO/IEC180006 C, RAIN
Modulation: PRASK, DSBASK
Aperture angle: 72
Read range: 10m
Antenna: Integrated
Transmitting power: Adjustable
Polarization: Circular
Axial ratio: Typ.2dB
Fronttoback ratio: >17dB
Connection of external antennas: 3(Up to +30dBm, can be adjusted separately)
Bulk reading:
Further functions: Diagnosis, updatable firmware, freely programmable data output format, Heartbeat, triggering, SICK AppSpace functionalities can be enabled with the SD card accessory SDK6UP00100 (for firmware ≥2.0.0)
Antenna: Integrated
Transmitting power: Adjustable
Polarization: Circular
Axial ratio: Typ.2dB
Fronttoback ratio: >17dB
Connection of external antennas: 3(Up to +30dBm, can be adjusted separately)

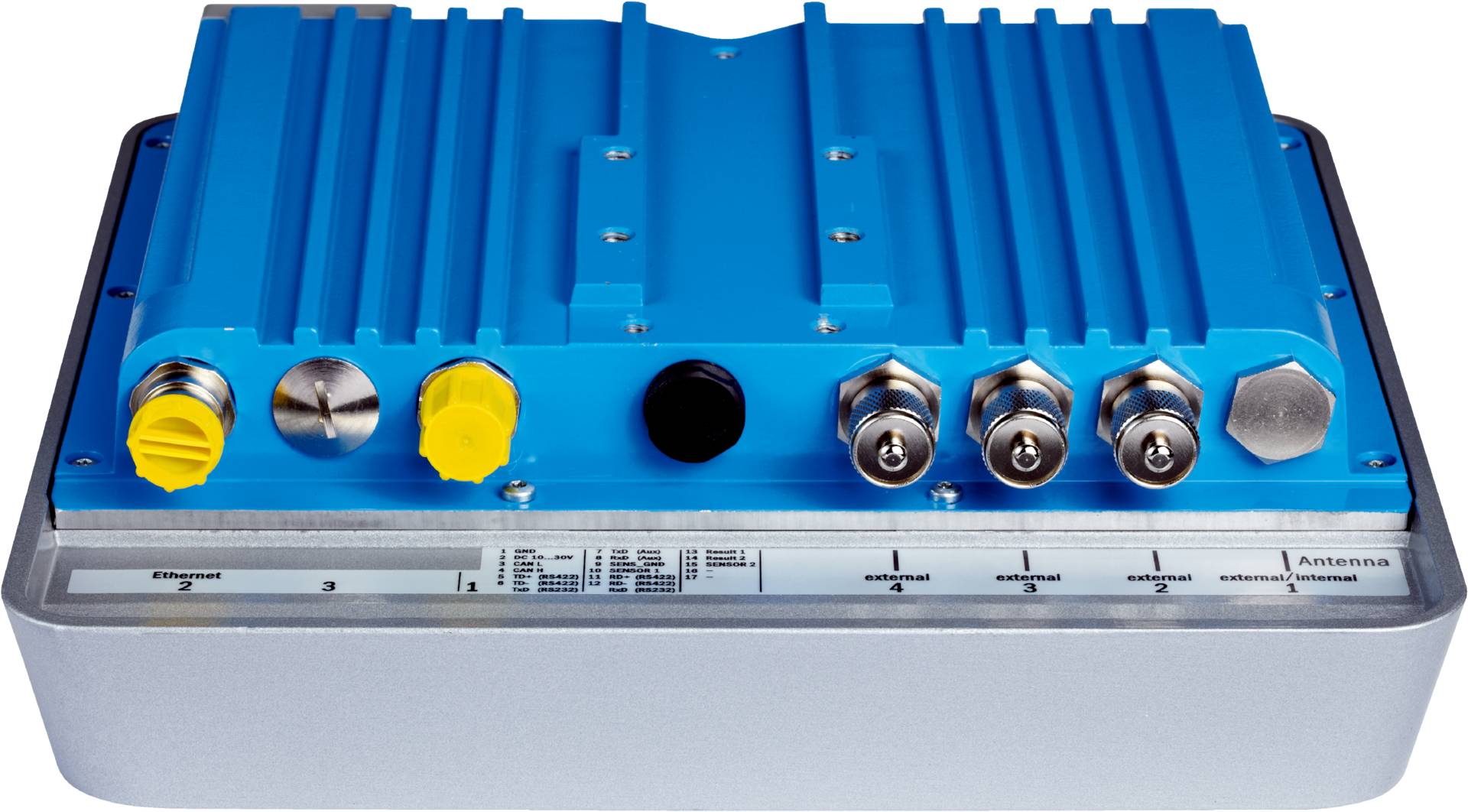

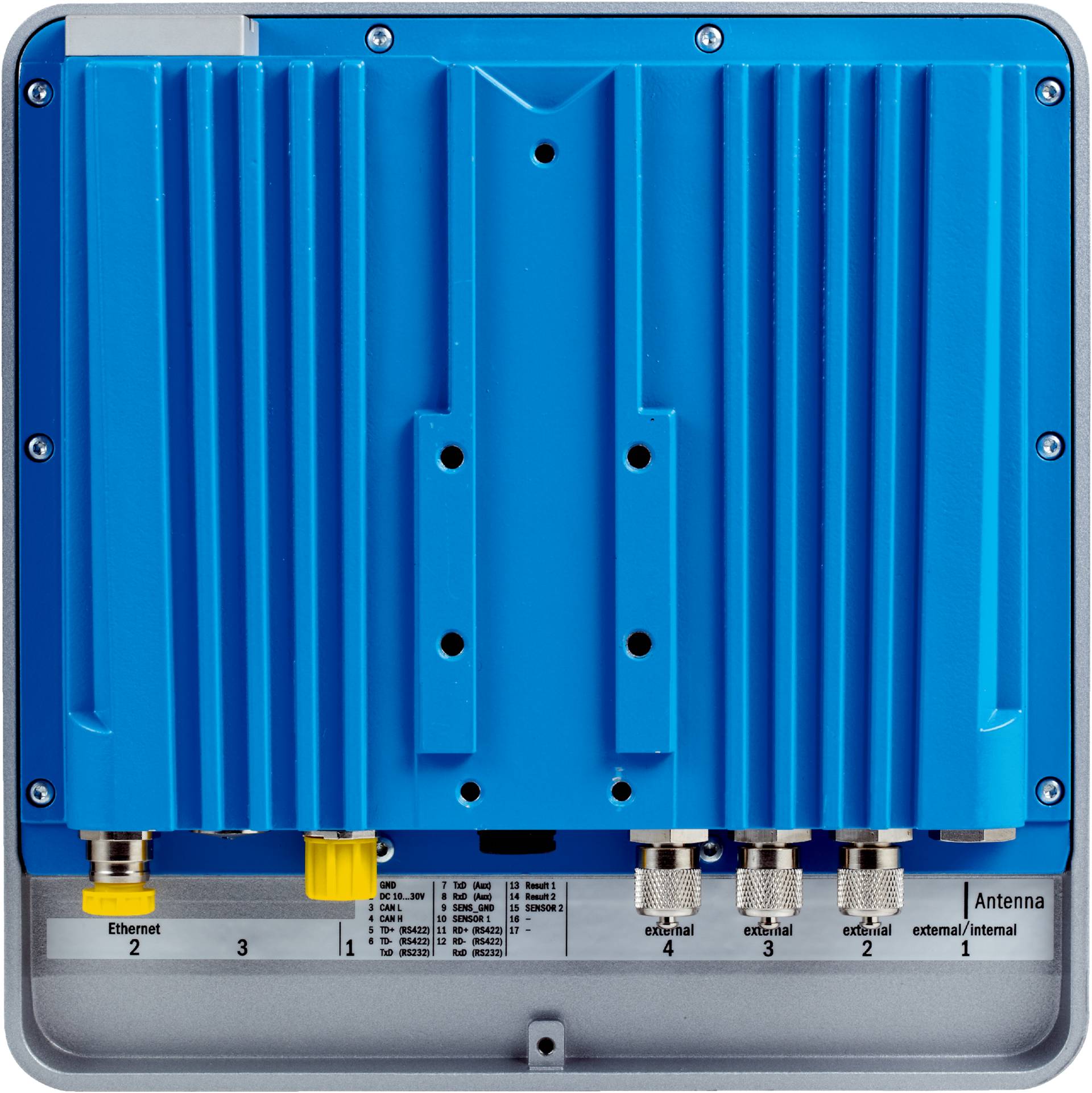

Connection type: 1x M12, 17pin male connector, Acoded 1x M12, 4pin female connector, Dcoded 1x USB, 5pin microB socket
Supply voltage 18VDC... 30VDC
Power consumption: Typ.20W
Housing material: Aluminum die cast
Housing color: Blue, black, silver
Enclosure rating: IP67
Protection class: III
Weight: 2.6kg
Dimensions (Lx Wx H): 239mmx 239mmx 64mm
MTBF: >100years
Ethernet: TCP/IP, OPC UA
Remark: Companion Spec V1.0from firmware 2.20
Function: Data interface (read result output), Service interface
Data transmission rate: 10/100MBit/s
PROFINET
Function: PROFINET Single Port, PROFINET Dual Port (optional via external connection module CDF600, Data interface (read result output)
Data transmission rate: 10/100MBit/s
EtherNet/IP
Function: Data interface (read result output)
Data transmission rate: 10/100MBit/s
EtherCAT
Type of fieldbus integration: Optional over external fieldbus module CDF600
Function: Data interface (read result output)
Serial: RS232, RS422
Remark: RS422 only via 4wire
Function: Data interface (read result output), Service interface
Data transmission rate: 0.3kBaud... 115.2kBaud, AUX: 57.6kBaud
CAN
Remark: CSN (SICK CAN Sensor Network)
Function: Data interface (read result output)
PROFIBUS DP
Type of fieldbus integration: Optional over external fieldbus module CDF6002
Function: Data interface (read result output)
USB:
Remark: USB 2.0
Function: Service interface
CANopen
Function: Data interface (read result output)
Digital inputs: 2(physical, 2additional logical inputs via optional CMC600 parameter memory in CDB620/CDM420)
Digital outputs: 2(physical, 2additional logical outputs via optional CMC600 parameter memory in CDB620/CDM420)
Optical indicators: 7LEDs, multicolor (device status) 1RGB LED (Process feedback)
Acoustic indicators: 1beeper (Feedback)
Control elements: 2buttons (choose and start/stop functions)
Operator interfaces: Web server
Configuration software: SOPAS ET
Programming interface: Applicationspecific programming using the SICK AppStudio development environment
Memory card: microSD memory card (parameter cloning, data storage)
Ethernet: TCP/IP, OPC UA
Remark: Companion Spec V1.0from firmware 2.20
Function: Data interface (read result output), Service interface
Data transmission rate: 10/100MBit/s
PROFINET
Function: PROFINET Single Port, PROFINET Dual Port (optional via external connection module CDF600, Data interface (read result output)
Data transmission rate: 10/100MBit/s
EtherNet/IP
Function: Data interface (read result output)
Data transmission rate: 10/100MBit/s
EtherCAT
Type of fieldbus integration: Optional over external fieldbus module CDF600
Function: Data interface (read result output)
Serial: RS232, RS422
Remark: RS422 only via 4wire
Function: Data interface (read result output), Service interface
Data transmission rate: 0.3kBaud... 115.2kBaud, AUX: 57.6kBaud
CAN
Remark: CSN (SICK CAN Sensor Network)
Function: Data interface (read result output)
PROFIBUS DP
Type of fieldbus integration: Optional over external fieldbus module CDF6002
Function: Data interface (read result output)
USB:
Remark: USB 2.0
Function: Service interface
CANopen
Function: Data interface (read result output)
Electromagnetic compatibility (EMC): EN3014893
Vibration resistance: EN60068264:200802
Shock resistance: EN60068227:200905
Ambient operating temperature: 30C... +60C
Storage temperature: 30C... +70C
Permissible relative humidity: 90%, Noncondensing
EU declaration of conformity
UK declaration of conformity
ChinaRoHS
Profinet Certificate
Ethernet/IP Certificate
Radio Approval Certificate
ECLASS 5.0: 27280401
ECLASS 5.1.4: 27280401
ECLASS 6.0: 27280401
ECLASS 6.2: 27280401
ECLASS 7.0: 27280401
ECLASS 8.0: 27280401
ECLASS 8.1: 27280401
ECLASS 9.0: 27280401
ECLASS 10.0: 27280401
ECLASS 11.0: 27280401
ECLASS 12.0: 27280401
ETIM 5.0: EC002998
ETIM 6.0: EC002998
ETIM 7.0: EC002998
ETIM 8.0: EC002998
UNSPSC 16.0901: 52161523

Typ: 1054396

Hersteller: SICK

UKCA: nicht relevant

Beschreibung

Sick UF RFID Schreib-/Lesegerät RFU630-13100

Abbildung ähnlich.
Bitte achten Sie auf die technischen Daten und die EAN des Produkts.

Hersteller:SickBezeichnung:UF RFID Schreib-/Lesegerät Typ:RFU630-13100Anzahl der digitalen Ausgänge:2Anzahl der digitalen Eingänge:2Breite:239 mmHöhe:64 mmTiefe:239 mmSchutzart (IP):IP67
Sick UF RFID Schreib-/Lesegerät RFU630-13100: weitere Details
RFID, RFU63x, RFU630-13100, Funkzulassung: Europäische Union, Südafrika, Saudi-Arabien, Vereinigte Arabische Emirate, Frequenzband: UHF (860 MHz ... 960 MHz), Lesereichweite: = 10 m, Schutzart: IP67 EAN: 4047084238109

Geliefert wird: Sick UF RFID Schreib-/Lesegerät RFU630-13100, Verpackungseinheit: 1 Stk., EAN: 4047084238109

Lieferumfang

Geliefert wird: Sick UF RFID Schreib-/Lesegerät RFU630-13100, Verpackungseinheit: 1 Stk., EAN: 4047084238109
