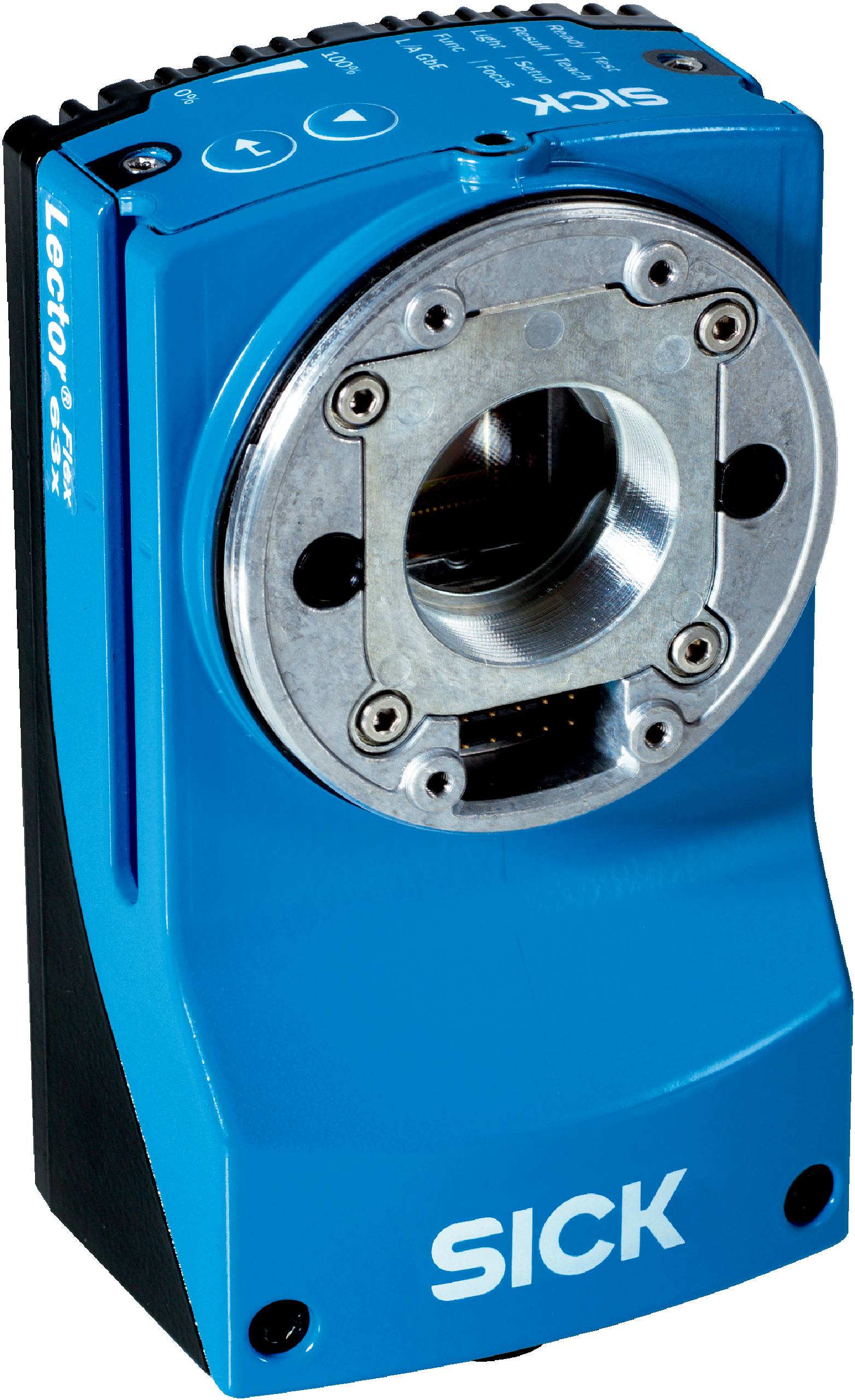

Sick V2D632R-MKMDB4, Bildbasierter Codeleser, P/n: 1074079
Hst.-Teile-Nr.:
Bestell-Nr.:
Produkt-Art
Codeleser
Typ
V2D632R-MKMDB4
Auflösung optisch
Inhalt
1 St.
Anzahl
Gesamt
8.222,13 €
zzgl. MwSt.
7,69 €
Nur noch 1 Stück verfügbar
Technische Daten
- Variant: Complete device
- Optical focus: Adjustable focus (manually)
- Sensor: CMOS matrix sensor, grayscale values
- Sensor resolution: 1,600pxx 1,200px
- Illumination: Integrated
- Illumination color: White, LED, Visible,
- Feedback spot: LED, Visible, green, 525nm, 15nm LED, Visible, Red, 630nm, 20nm
- Alignment aid: Laser, Red, 630nm... 680nm
- Laser class: 1, Complies with 21CFR 1040.10and 1040.11except for conformance with IEC608251 Ed.3., as described in Laser Notice No. 56 dated May 8, 2019(IEC608251:2014, EN608251:2014 +A11:202
- LensCmount (compact)
- Optical format: 1/1.8"
- Focal length: 12mm
- Aperture: 8

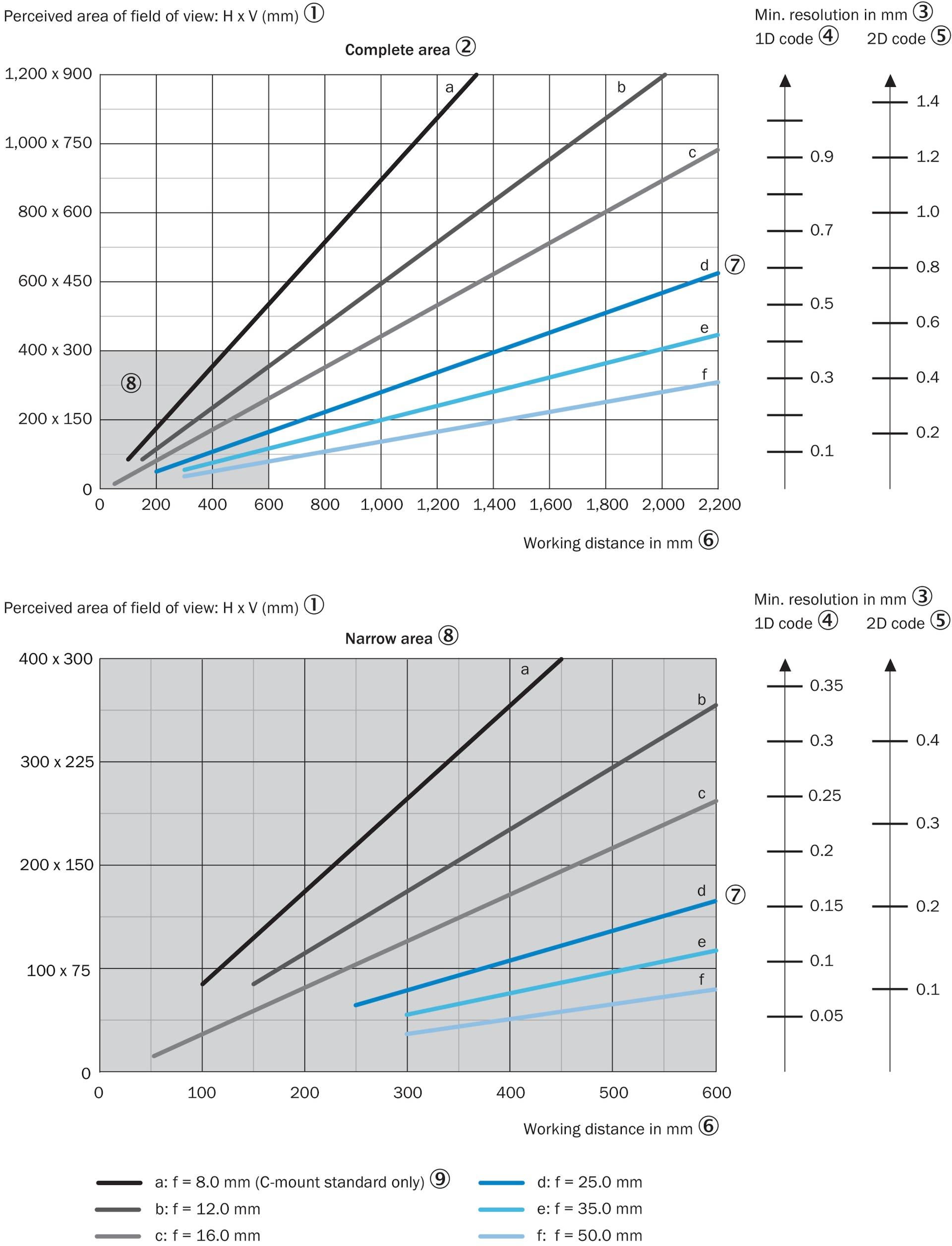

- Reading distance: 50mm... 2,200mm
- Scanning frequency: 50Hz, at 1.9megapixels resolution
- Code resolution: 0.1mm
- LensCmount (compact)
- Optical format: 1/1.8"
- Focal length: 12mm
- Aperture: 8

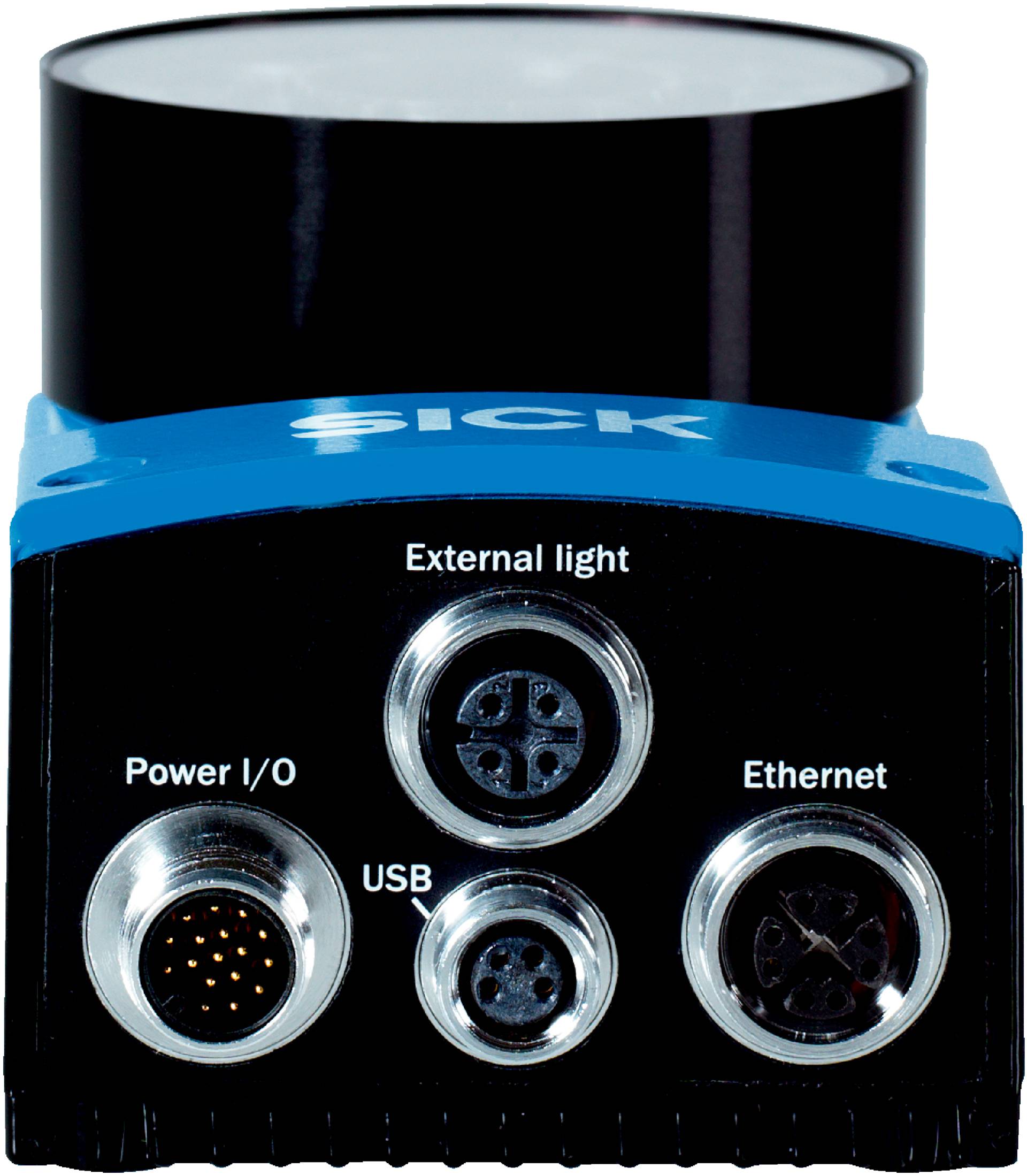

- Connection type: 1x M12, 17pin plug (serial, CAN, I/Os, power supply) 1x M12, 8pin socket (Ethernet, 1GBit/s) 1x M8, 4pin socket (USB) 1x M12, 4pin socket (external illumination control)
- Supply voltage 12VDC... 24VDC, 20%
- Power consumption: Typ.10W, 20%
- Output current: 100mA
- Housing material: Aluminum die cast
- Window material: Plastic
- Enclosure rating: IP67 (EN60529 (1991, EN60529/A2 (20020)
- Electrical safety: EN609501 (20110
- Weight: 500g
- Dimensions (Lx Wx H): 108mmx 63.1mmx 74.1mm
- Readable code structures: 1D codes, Stacked, 2D codes
- Barcode types: GS1128 / EAN 128, UPC / GTIN / EAN, Interleaved 2of 5, Pharmacode, GS1 DataBar, Code 39, Code 128, Codabar, Code 32, Code 93, USPS (Postnet, Planet, USPS4SCB), Australian Post, Dutch KIX Post, Royal Mail, Swedish Post
- 2D code types: Data Matrix ECC200, GS1 DataMatrix, MaxiCode, QR code
- Stacked code types: PDF417
- Code qualification: On the basis of ISO/IEC16022, ISO/IEC15415, ISO/IEC18004
- Ethernet: TCP/IP
- Function: Data interface (read result output), Service interface, FTP (image transmission)
- Data transmission rate: 10/100/1,000Mbit/s
- PROFINET
- Function: PROFINET Single Port (integrated), PROFINET Dual Port (optional via external connection module CDF600
- Data transmission rate: 10/100MBit/s
- EtherNet/IP
- Data transmission rate: 10/100/1,000Mbit/s
- Serial: RS232, RS422
- Function: Data interface (read result output), Service interface
- Data transmission rate: 0.3kBaud... 115.2kBaud, AUX: 57.6kBaud (RS23
- CAN
- Function: SICK CAN sensor network CSN (CAN controller/CAN device, multiplexer/server)
- Data transmission rate: 250kbit/s... 500kbit/s
- PROFIBUS DP
- Type of fieldbus integration: Optional over external fieldbus module CDF6002
- Digital inputs: 4(Sensor 1, Sensor 2, 2inputs via optional CMC600 parameter memory in CDB650/CDM420)
- Configurable inputs: Encoder input, external trigger
- Digital outputs: 6(CDB650: Result 1, Result 2, Result 3, Result 4, 2external outputs via CMC600 or CDM420: Result 1, Result 2, 2external outputs via CMC600 or cable with open end: Result 1, Result 2, Result 3, Result 4)
- Configurable outputs: Good read, External illumination control, free configurable output condition, "device ready"
- Reading pulse: Digital inputs, nonpowered, serial interface, Ethernet, CAN, auto pulse, presentation mode
- Optical indicators: 11LEDs (5x status display, 5x LED bar graph, 1green/red feedback spot)
- Acoustic indicators: Beeper (configurable)
- Control elements: 2buttons (choose and start/stop functions)
- Operator interfaces: Web server
- Configuration software: SOPAS ET
- Memory card: Micro SD memory card (flash card) max. 32GB, optional
- Data storage and retrieval: Image and data storage via microSD memory card and external FTP
- EncoderFrequency: Max.1kHz
- External illumination control: Via digital output (max. 24V trigger) or external illumination connection
- Ethernet: TCP/IP
- Function: Data interface (read result output), Service interface, FTP (image transmission)
- Data transmission rate: 10/100/1,000Mbit/s
- PROFINET
- Function: PROFINET Single Port (integrated), PROFINET Dual Port (optional via external connection module CDF600
- Data transmission rate: 10/100MBit/s
- EtherNet/IP
- Data transmission rate: 10/100/1,000Mbit/s
- Serial: RS232, RS422
- Function: Data interface (read result output), Service interface
- Data transmission rate: 0.3kBaud... 115.2kBaud, AUX: 57.6kBaud (RS23
- CAN
- Function: SICK CAN sensor network CSN (CAN controller/CAN device, multiplexer/server)
- Data transmission rate: 250kbit/s... 500kbit/s
- PROFIBUS DP
- Type of fieldbus integration: Optional over external fieldbus module CDF6002
- Electromagnetic compatibility (EMC): EN6100062:200508/ EN6100064 (20070 + A1 (201
- Vibration resistance: EN6006826:200802
- Shock resistance: EN60068227:200905
- Ambient operating temperature: 0C... +50C
- Storage temperature: 20C... +70C
- Permissible relative humidity: 90%, Noncondensing
- EU declaration of conformity
- UK declaration of conformity
- ACMA declaration of conformity
- ChinaRoHS
- cULus Certificate
- Profinet Certificate
- BIS registration:
- ECLASS 5.0: 27280103
- ECLASS 5.1.4: 27280103
- ECLASS 6.0: 27280103
- ECLASS 6.2: 27280103
- ECLASS 7.0: 27280103
- ECLASS 8.0: 27280103
- ECLASS 8.1: 27280103
- ECLASS 9.0: 27280103
- ECLASS 10.0: 27280103
- ECLASS 11.0: 27280103
- ECLASS 12.0: 27280103
- ETIM 5.0: EC002550
- ETIM 6.0: EC002550
- ETIM 7.0: EC002999
- ETIM 8.0: EC002999
- UNSPSC 16.0901: 43211701
