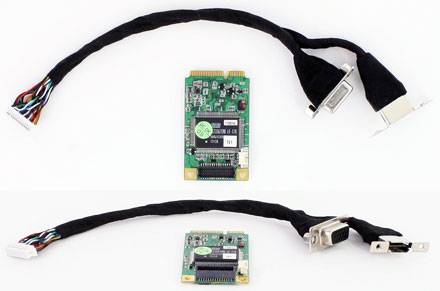

CarTFT VCC-540 Mini-PCIe (1x HDMI, 1x YPbPr, 1x DVI-D, 1x VGA Capture Card)
EAN:
Hst.-Teile-Nr.:
Bestell-Nr.:
Datenblatt (PDF)
2 Stück
Neu
Rechnungsstellung für alle Partner-Artikel jetzt direkt durch ConradMenge (Stück)
Ersparnis
Verpackungspreis (zzgl. MwSt.)
1
-
221,37 €
5
2% = 4,72 €
216,65 €
10
4% = 9,42 €
211,95 €
Mengenrabatte variieren je nach Verkäufer
Sie sparen 0,00 €
Anzahl
Gesamt (221,37 € / Stück)
221,37 €
zzgl. MwSt.
& Kostenfreier Versand
Nur noch 2 Stück verfügbar
14 Tage Rückgaberecht inklusive
Technische Daten
- Max. FPS : 30/25fps @ 1920x1080p
- Recording Mode : Software Compression, Real-Time Mode
- Dimension : 30 × 50.95 (mm)
- INterface : Minicard (PCIe x1)
- Video Input : 1x YPbPr ,1x HDMI , 1x DVI-D, 1x VGA, (Through on-board wafer connector)
- Display Video Format : YV12,NV12,YUY2,RGB24,RGB32
- Audio Input : 1x HDMI Embedded audio, Audio L/R (2x RCA through wafer connector to A/V cable)
- Audio Format : Stereo / 16-bit / 32000 ~ 48000Hz
- I/O : n/a
- Watchdog : Yes
- Multiple Card : ∞
- SDK : VC++ / C# / .NET / VB / V4L2
- OS Support : Windows XP / Vista / Windows 7, Windows 8 / Windows 8.1/ Windows 10, Linux 2.6.14 or Higher, ( 32-bit and 64-bit )
- Display Video Resolution : 1920×1080p@30/25/24fps,1920×1080i@60/50fps,1280×720p@60/50fps,1280×1024p@60fps,1280×960p@60fps,1024×768p@60fps,800×600p@60fps,640×480p@60fps,720×480p@60fps,720×576p@50fps,720×480i@60fps,720×576i@50fps
- Recording Video Format : MPEG4 / H.264 (Software Compression)
- Recording Video Resolution (Dual Stream) : 1920×1080p@30/25/24fps,1920×1080i@60/50fps,1280×720p@60/50fps,1280×1024p@60fps,1280×960p@60fps,1024×768p@60fps,800×600p@60fps,640×480p@60fps,720×480p@60fps,720×576p@50fps,720×480i@60fps,720×576i@50fps
- Description : Single Channel Software Compression 1080P at 30fps Input Video Capture Card
- UKCA
Ja
Dokumente & Downloads
Datenblatt
Datenblatt 800280583 CarTFT VCC-540 Mini-PCIe (1x HDMI, 1x YPbPr, 1x DVI-D, 1x VGA Capture Card)
Beschreibung
Features :
- H.264 Software Compression 1ch Video Input
- HDMI/YPbPr/DVI-D/VGA input
- HD 1080P at 30fps Single Channel Input
- MiniPCIe (MiniCard) Interface
- H.264 Software Compression 1ch Video Input
- HDMI/YPbPr/DVI-D/VGA input
- HD 1080P at 30fps Single Channel Input
- MiniPCIe (MiniCard) Interface
