Planet Switch verwaltet 8 x 10/100/1000 an DIN-Schiene montierbar

 8-Port 10/100/1000BASE-T RJ45 copper   Industrial
Case/Installation IP30 metal case protection DIN-rail
and wall mount design Redundant power design - 12 to 48V DC,
redundant power with polarity reverse protect
function - AC 24V power adapter acceptable Supports
EFT 6000VDC protection for power line Supports
6000VDC Ethernet ESD protection -40 to 75 degrees
C operating temperature   Layer 2 Features Prevents
packet loss with back pressure (half-duplex) and
IEEE 802.3x pause frame flow control (full-duplex)
High performance Store and Forward architecture,
broadcast storm control, runt/CRC filtering eliminates
erroneous packets to optimize the network bandwidth
Supports VLAN - IEEE 802.1Q tagged VLAN - Provider
Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
- Protocol VLAN - Voice VLAN - Private VLAN -
Management VLAN - GVRP Supports Spanning Tree
Protocol - STP (Spanning Tree Protocol) - RSTP
(Rapid Spanning Tree Protocol) - MSTP (Multiple
Spanning Tree Protocol) - STP BPDU Guard,
BPDU filtering and BPDU forwarding Supports Link
Aggregation - IEEE 802.3ad Link Aggregation Control
Protocol (LACP) - Cisco ether-channel (static
trunk) Provides port mirror (many-to-1) Loop protection
to avoid broadcast loops   Quality of Service
Ingress and egress rate limit per port bandwidth
control Storm control support - Broadcast/Unknown
unicast/Unknown multicast Traffic classification
- IEEE 802.1p CoS - TOS/DSCP/IP precedence of
IPv4/IPv6 packets Strict priority and Weighted
Round Robin (WRR) CoS policies   Multicast Supports
IPv4 IGMP snooping v2 and v3 Supports IPv6 MLD snooping v1,
v2 IGMP querier mode support IGMP snooping port
filtering MLD snooping port filtering   Security
Authentication - IEEE 802.1X port-based network
access authentication - Built-in RADIUS client
to co-operate with the RADIUS servers - RADIUS/TACACS+
login user access authentication Access control
list - IPv4/IPv6 IP-based ACL - MAC-based ACL
MAC security - Static MAC - MAC filtering Port
security for source MAC address entries filtering
DHCP snooping to filter distrusted DHCP messages
Dynamic ARP Inspection discards ARP packets with
invalid MAC address to IP address binding IP source
guard prevents IP spoofing attacks DoS attack
prevention SSH/SSL   Management IPv4 and IPv6
dual stack management Switch management interface
- Web switch management - Telnet command line
interface - SNMP v1,
v2c and v3 - SSH and SSL secure access User privilege
levels control Built-in Trivial File Transfer
Protocol (TFTP) client BOOTP and DHCP for IP address
assignment System maintenance - Firmware upload/download
via HTTP/TFTP - Configuration upload/download
through web interface - Dual images - Hardware
reset button for system reboot or reset to factory
default SNTP Network Time Protocol Cable diagnostics
Link Layer Discovery Protocol (LLDP) and LLDP-MED
SNMP trap for interface link up and link down
notification Event message logging to remote Syslog
server Four RMON groups (history,
statistics, alarms and events) PLANET smart discovery
utility    Perfect,
Slim-type Managed Switch with More Practicability

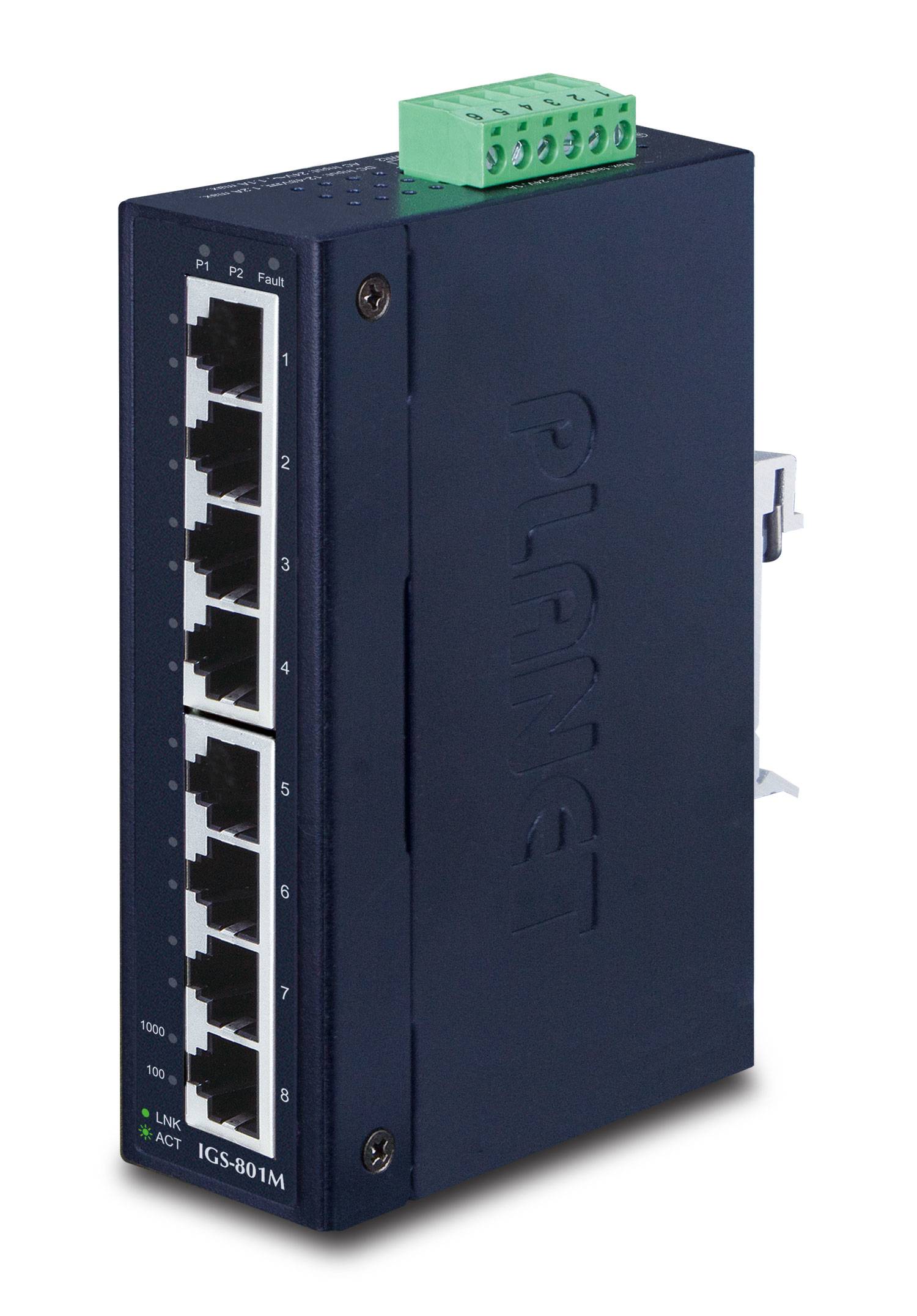

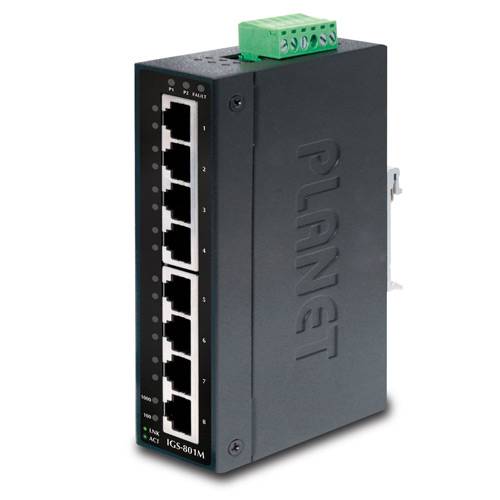

and Convenience PLANET IGS-801M is an Industrial
8-Port Full Gigabit Managed Ethernet Switch specially
designed to transmit reliable but high-speed data
in heavy industrial demanding environments.
It provides 8-Port 10/100/1000BASE-T copper interfaces
delivered in an IP30 rugged strong case with redundant power system.
Besides support for 16Gbps switch fabric to handle
extremely large amounts of video,
voice and important data in a secure topology,
the IGS-801M provides user-friendly but advanced
IPv6/IPv4 management interfaces and abundant L2/L4
switching functions.
It is the best investment for industrial business
expanding or upgrading its network infrastructure.
   Environmentally Hardened Design With IP30 industrial
case protection,
the IGS-801M provides a high level of immunity
against electromagnetic interference and heavy
electrical surges which are usually found on plant
floors or in curb-side traffic control cabinets.
It also possesses an integrated power supply source
with wide range of voltages (12 to 48V DC or 24V
AC) for worldwide high availability applications
requiring dual or backup power inputs.
Being able to operate under the temperature range
from -40 to 75 degrees C,
the IGS-801M can be placed in almost any difficult environment.
  Robust Layer 2 Features The IGS-801M can be
programmed for advanced switch management functions
