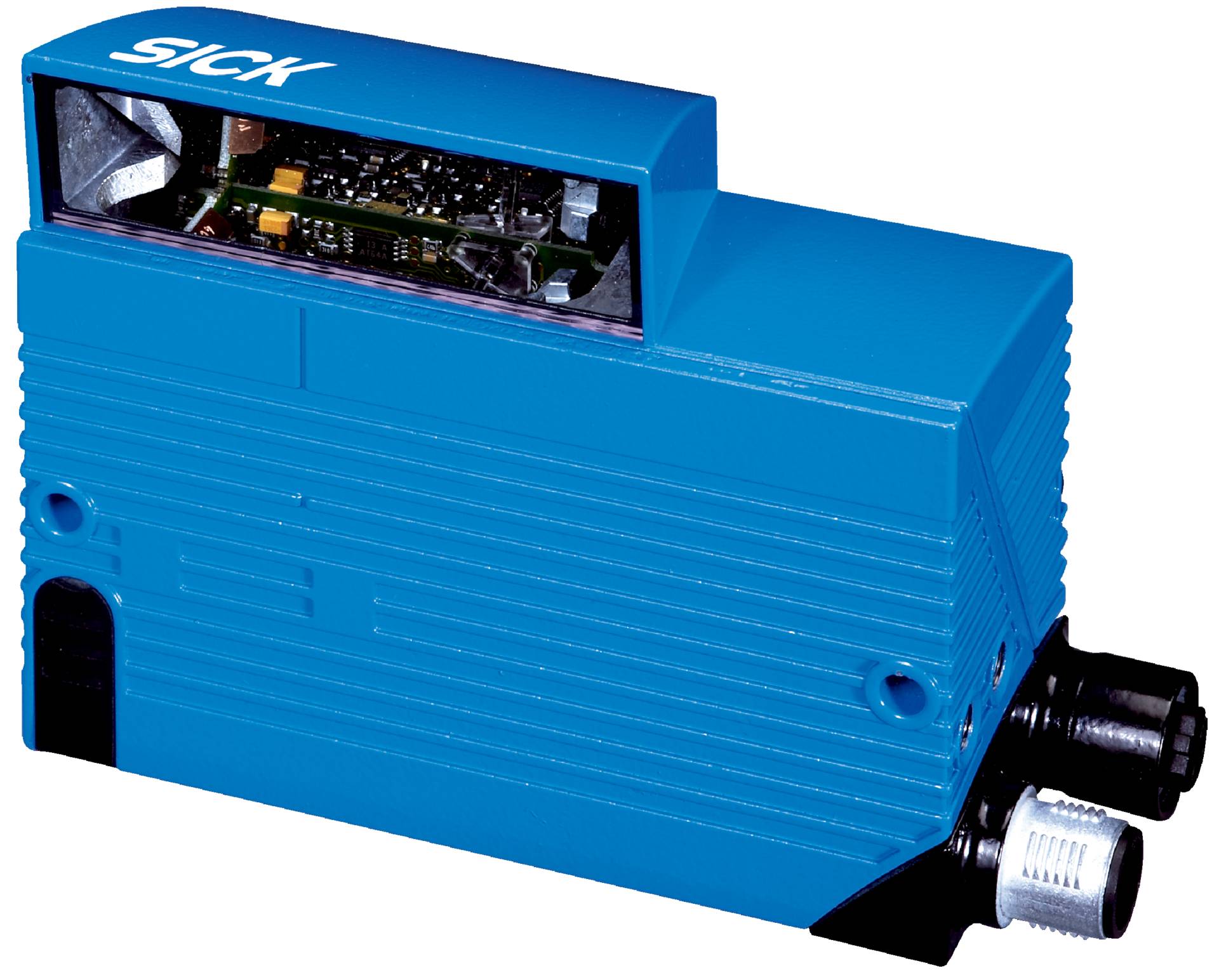

Name: Sick CLV632-2120, Fest montierter Barcodescanner, P/n: 1041993
Brand: SICK
SKU: 926738487
Availability: InStock

Sick CLV632-2120, Fest montierter Barcodescanner, P/n: 1041993-0

Sick CLV632-2120, Fest montierter Barcodescanner, P/n: 1041993-1

1/2

Produkt-Art

Barcodescanner

Typ

CLV632-2120

Inhalt

1 St.

UKCA

Lieferung Fr., 23. Okt.

1 Stück

Neu

Rechnungsstellung für alle Partner-Artikel jetzt direkt durch Conrad

Verkauf durch Conrad ElectronicVersand durch FAMAGA GROUP GmbH & Co. KG

Anzahl

Stück

Gesamt

3.555,18 €

zzgl. MwSt.

Kostenfreier Versand

Nur noch 1 Stück verfügbar

14 Tage Rückgaberecht inklusive

Rechtliche Bedenken melden

Umwelt & Entsorgung (Elektrogeräte, Batterien, Verpackungen)

Technische Daten

Version: Short Range
Connection type: Ethernet
Reading field: Side (105)
Sensor type: Line scanner
Optical focus: Fixed focus
Light source: Light spot, laser, Visible, Red, 655nm
Light spot: Circular
Laser class: 2, complies with 21CFR 1040.10except for the conformance according to Laser Notice No. 56 from May 8, 2019(EN608251:2014 +A11:2021, IEC608251:201
Aperture angle: 50
Reading distance: 44mm... 256mm
Scanning frequency: 400Hz... 1,200Hz
Code resolution: 0.2mm... 0.5mm
Connection type: 2x M12 cylindrical connectors (12pin male connector, 4pin female connector) on swivel connector
Supply voltage 18VDC... 30VDC
Power consumption: 5W
Housing material: Aluminum die cast
Housing color: Light blue (RAL 501
Window material: Glass
Enclosure rating: IP65 (EN6052
Protection class: III (EN61140)
Weight: 270g, without connecting cable

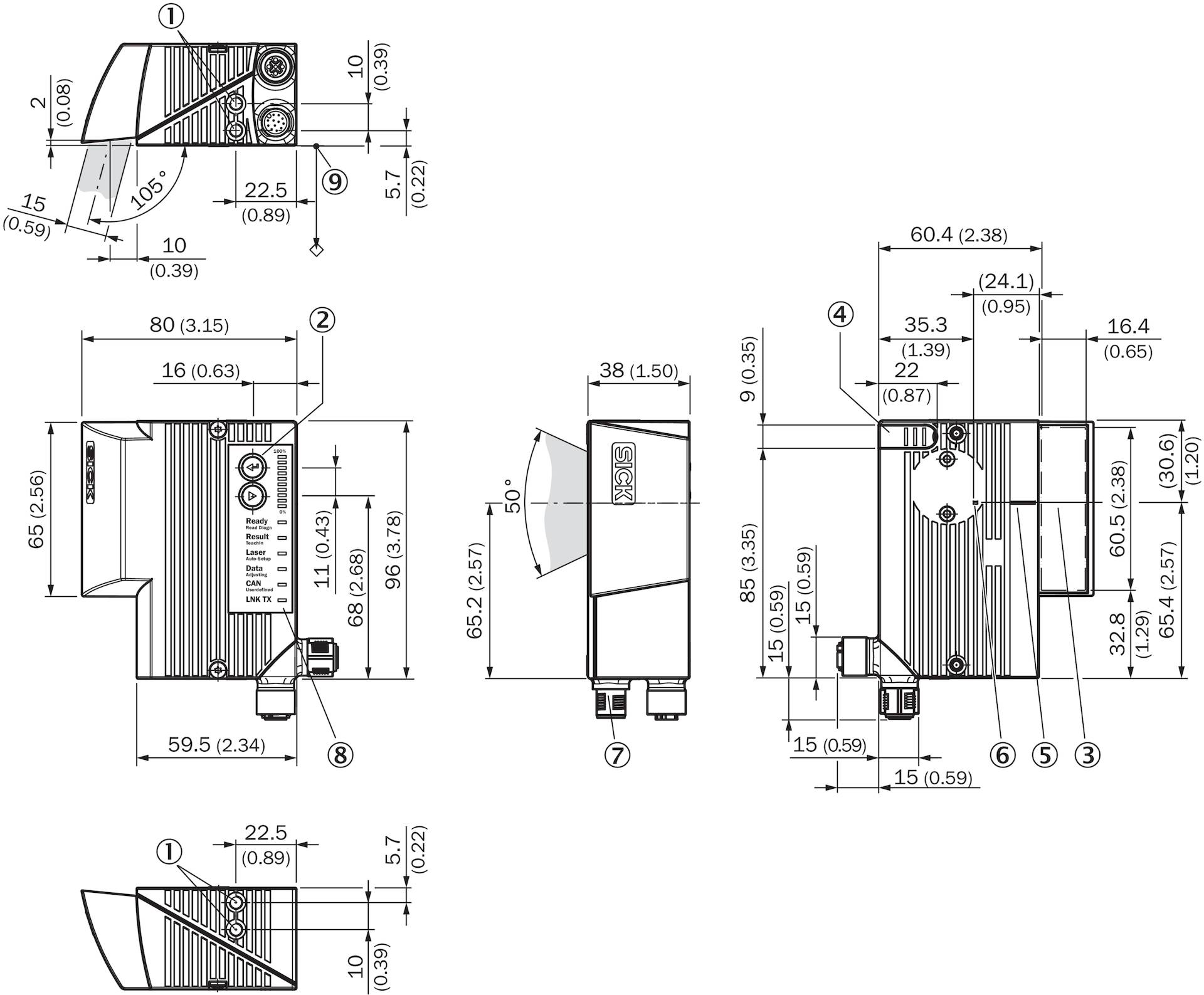

Dimensions (Lx Wx H): 80mmx 96mmx 38mm
MTBF: 100,000h
MTTF: 40,000h (Laser diode)
Readable code structures: 1D codes
Barcode types: All current code types, Code 39, Code 128, Code 93, Codabar, GS1128 / EAN 128, UPC / GTIN / EAN, Interleaved 2of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey
Code printing process: Label (printed codes)
Print ratio: 2:1... 3:1
No. of codes per sCAN 1... 20(Standard decoder) 1... 6(SMART decoder)
No. of codes per reading interval: 1... 50(autodiscriminating)
No. of characters per reading interval: 5,000 500(for multiplexer function in CAN operation)
No. of multiple readings: 1... 99
Ethernet: TCP/IP
Function: Data interface (read result output), Service interface
Data transmission rate: 10/100MBit/s
PROFINET
Function: PROFINET Single Port, PROFINET Dual Port (optional via external connection module CDF600
Data transmission rate: 10/100MBit/s
EtherNet/IP
Data transmission rate: 10/100MBit/s
EtherCAT
Type of fieldbus integration: Optional over external fieldbus module CDF600
Serial: RS232, RS422, RS485
Function: Data interface (read result output), Service interface
Data transmission rate: 2,400Baud... 115.2kBaud, AUX: 57.6kBaud (RS23
CAN
Function: SICK CAN sensor network CSN (CAN controller/CAN device, multiplexer/server)
Data transmission rate: 20kbit/s... 1Mbit/s
CANopen
Data transmission rate: 20kbit/s... 1Mbit/s
PROFIBUS DP
Type of fieldbus integration: Optional over external fieldbus module CDF6002
Digital inputs: 3(Sensor 1, 2inputs via optional parameter storage CMC600 in CDB620/CDM420)
Digital outputs: 2(Via optional CMC600 parameter memory in CDB620/CDM420)
Reading pulse: Digital inputs, nonpowered, serial interface, auto pulse, CAN
Optical indicators: 6LEDs (Ready, Result, laser, Data, CAN, LNK TX, Bar graph for displaying the reading rate percentage (10LEDs))
Acoustic indicators: Beeper/buzzer (can be switched off, can be allocated as a result indication function)
Control elements: 2buttons (choose and start/stop functions)
Configuration software: SOPAS ET
Memory card: MicroSD memory card (flash card), optional
Ethernet: TCP/IP
Function: Data interface (read result output), Service interface
Data transmission rate: 10/100MBit/s
PROFINET
Function: PROFINET Single Port, PROFINET Dual Port (optional via external connection module CDF600
Data transmission rate: 10/100MBit/s
EtherNet/IP
Data transmission rate: 10/100MBit/s
EtherCAT
Type of fieldbus integration: Optional over external fieldbus module CDF600
Serial: RS232, RS422, RS485
Function: Data interface (read result output), Service interface
Data transmission rate: 2,400Baud... 115.2kBaud, AUX: 57.6kBaud (RS23
CAN
Function: SICK CAN sensor network CSN (CAN controller/CAN device, multiplexer/server)
Data transmission rate: 20kbit/s... 1Mbit/s
CANopen
Data transmission rate: 20kbit/s... 1Mbit/s
PROFIBUS DP
Type of fieldbus integration: Optional over external fieldbus module CDF6002
Electromagnetic compatibility (EMC): EN6100063 (2001/ EN6100062:2005
Vibration resistance: EN6006826 (199
Shock resistance: EN60068227 (199
Ambient operating temperature: 0C... +40C
Storage temperature: 20C... +70C
Permissible relative humidity: 90%, Noncondensing
Ambient light immunity: 2,000lx, on barcode
Bar code print contrast (PCS): ≥60%
EU declaration of conformity
UK declaration of conformity
ACMA declaration of conformity
ChinaRoHS
cULus Certificate
KC Mark Certificate
Ethercat Certificate
Profinet Certificate
Laser safety (IEC 60825 declaration of manufacturer:
ECLASS 5.0: 27280102
ECLASS 5.1.4: 27280102
ECLASS 6.0: 27280102
ECLASS 6.2: 27280102
ECLASS 7.0: 27280102
ECLASS 8.0: 27280102
ECLASS 8.1: 27280102
ECLASS 9.0: 27280102
ECLASS 10.0: 27280102
ECLASS 11.0: 27280102
ECLASS 12.0: 27280102
ETIM 5.0: EC002550
ETIM 6.0: EC002550
ETIM 7.0: EC002550
ETIM 8.0: EC002550
UNSPSC 16.0901: 43211701
