Name: Sick LMS511-10100 PRO, LiDAR-Sensor, P/n: 1046135
Brand: SICK
SKU: 858245606
Availability: InStock

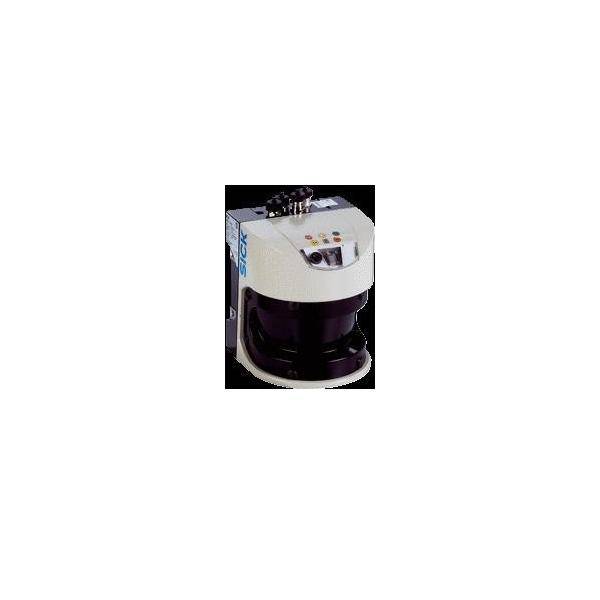

Sick LMS511-10100 PRO, LiDAR-Sensor, P/n: 1046135-0

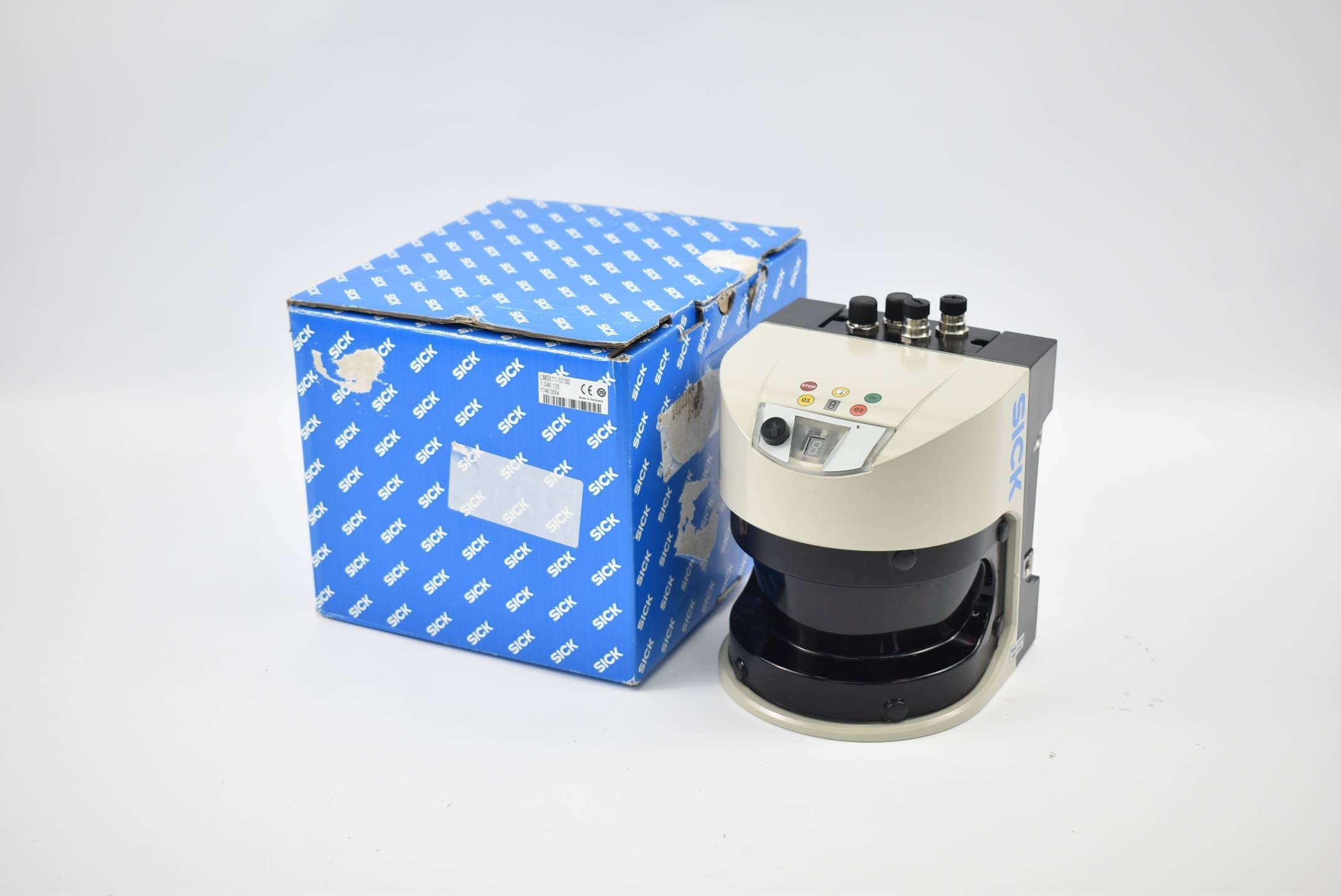

Sick LMS511-10100 PRO, LiDAR-Sensor, P/n: 1046135-1

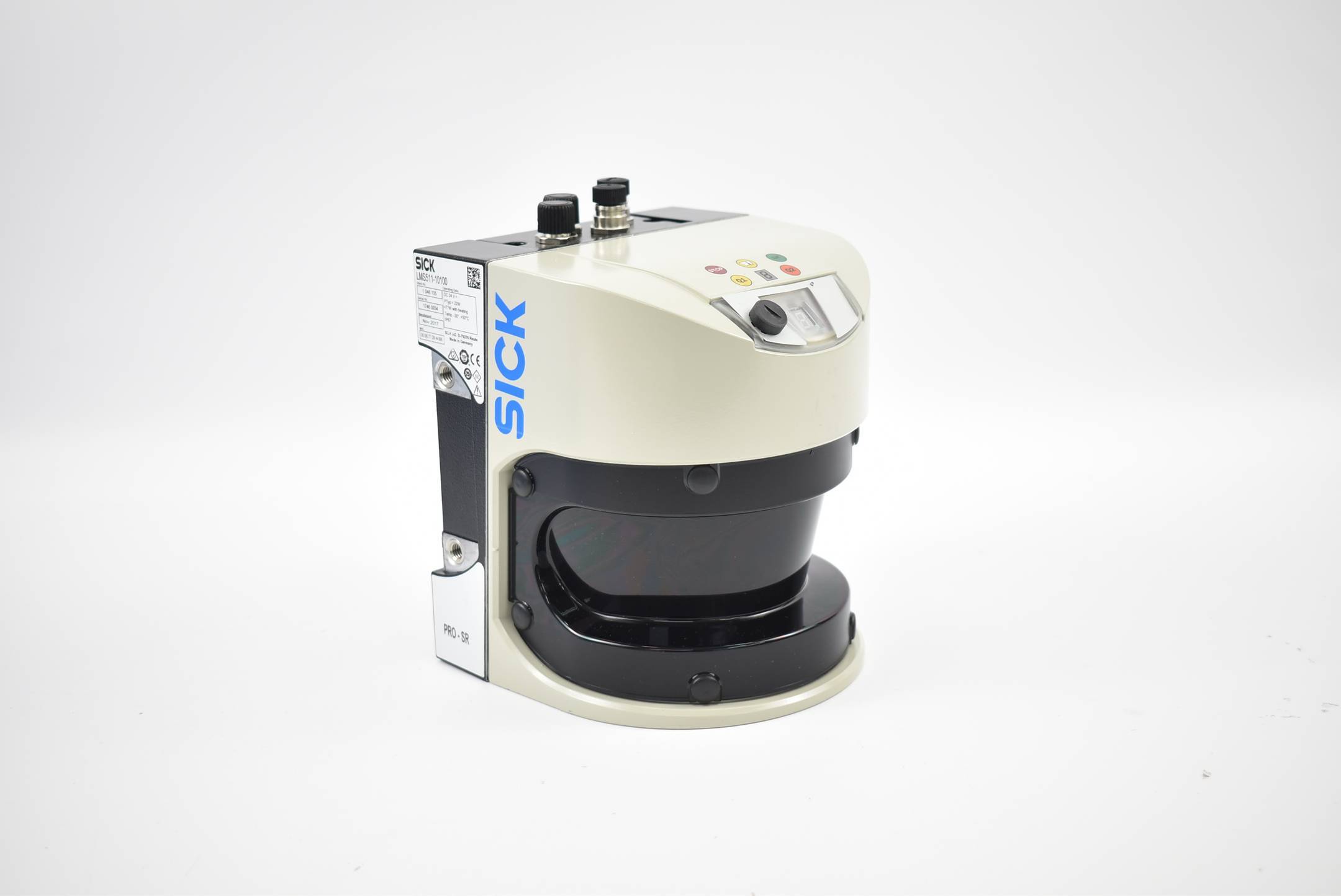

Sick LMS511-10100 PRO, LiDAR-Sensor, P/n: 1046135-2

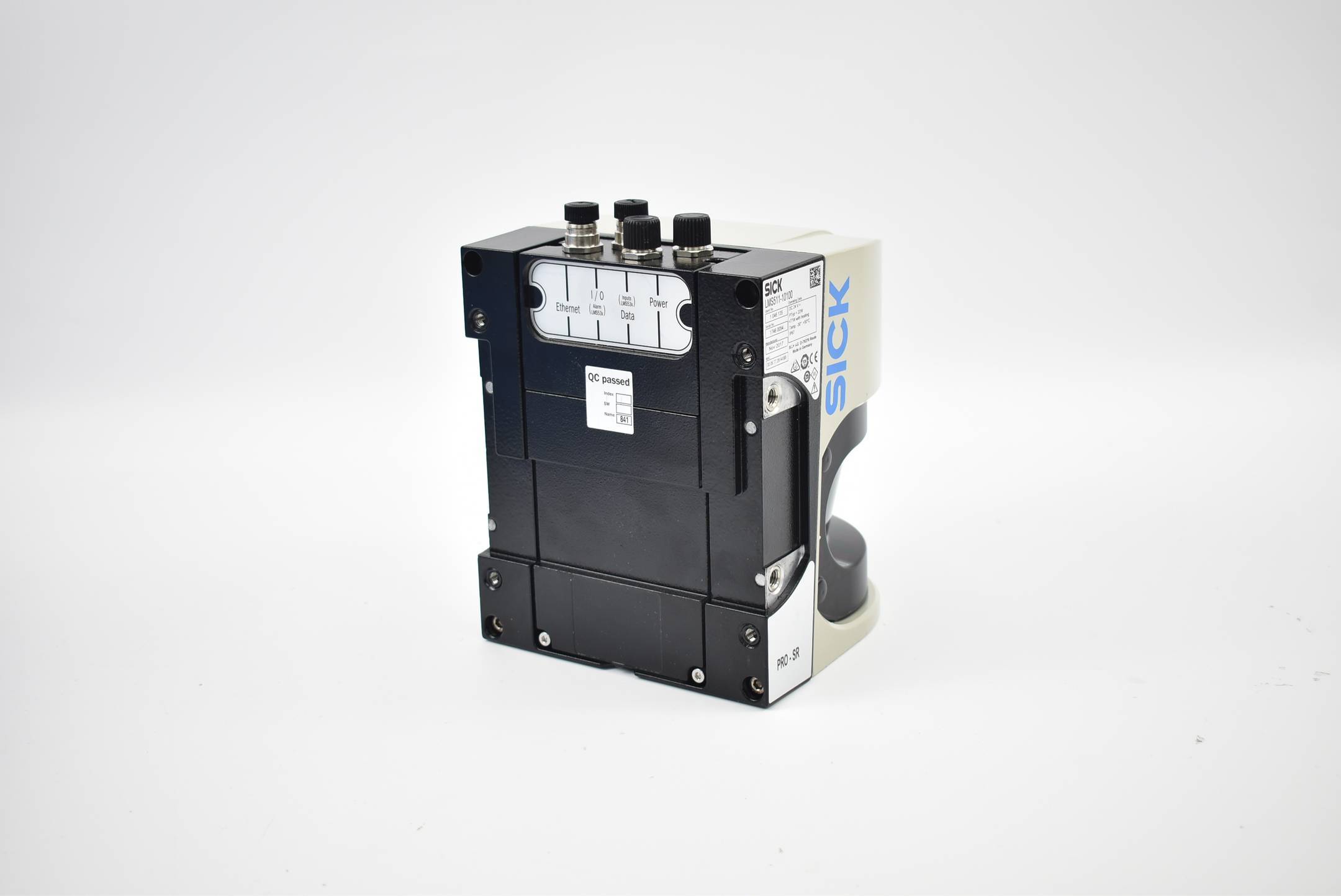

Sick LMS511-10100 PRO, LiDAR-Sensor, P/n: 1046135-3

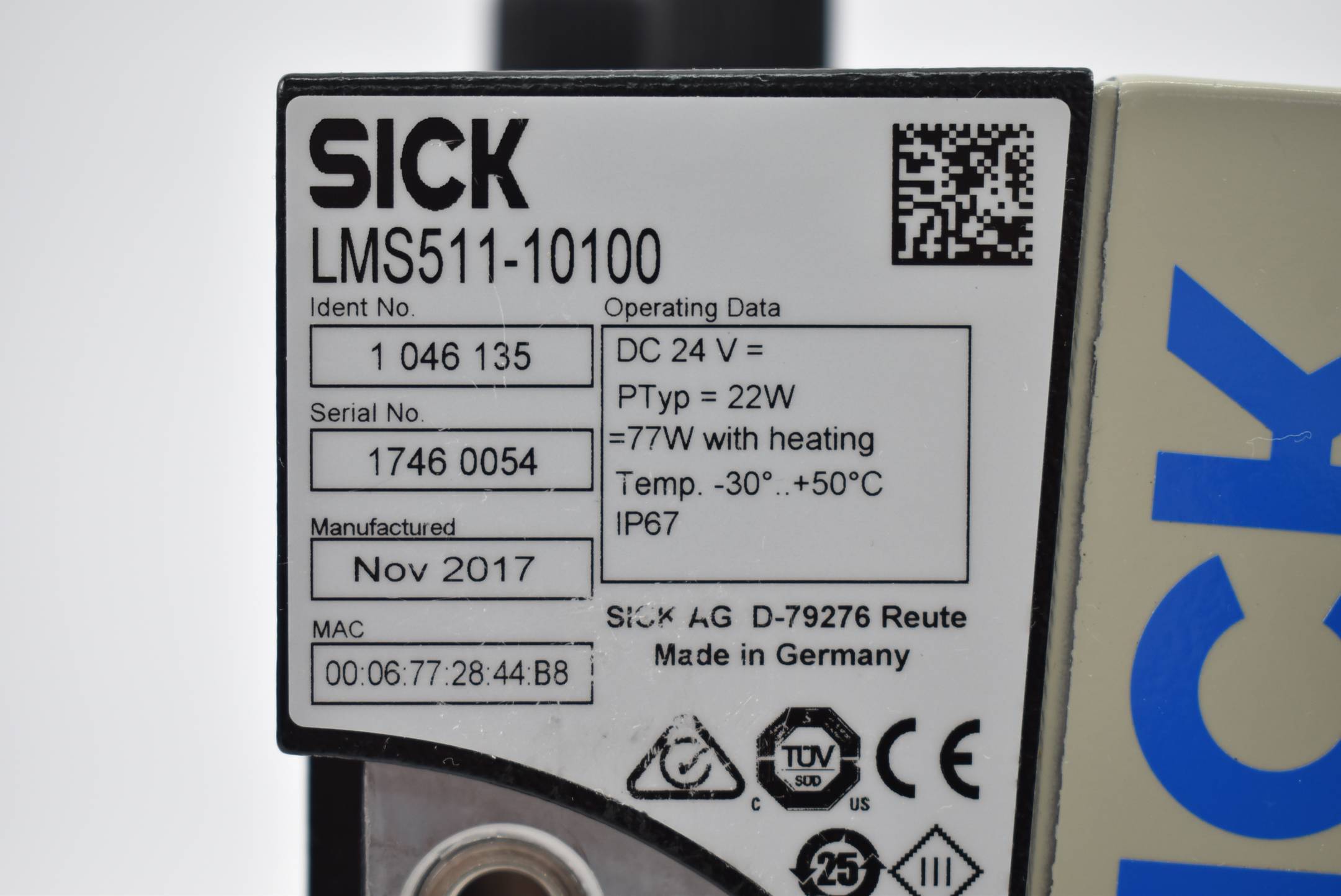

Sick LMS511-10100 PRO, LiDAR-Sensor, P/n: 1046135-4

1/5

Produkt-Art

LiDAR-Sensor

Länge

160 mm

Höhe

185 mm

Typ

LMS511-10100 PRO

Ausführung

Lidar

Lieferung Mo., 26. Okt.

1 Stück

Neu

Rechnungsstellung für alle Partner-Artikel jetzt direkt durch Conrad

Verkauf durch Conrad ElectronicVersand durch cetra IT Europe GmbH

Anzahl

Stück

Gesamt

12.261,96 €

zzgl. MwSt.

Kostenfreier Versand

Nur noch 1 Stück verfügbar

14 Tage Rückgaberecht inklusive

Sie haben bereits das beste Angebot für Ihre Menge.

Die optimale Auswahl für die eingegebene Menge wird automatisch berechnet, inklusive Preis (exkl. Versand) und Lieferzeit.

Rechtliche Bedenken melden

Umwelt & Entsorgung (Elektrogeräte, Batterien, Verpackungen)

Technische Daten

Application: Outdoor, Indoor
Variant: PRO
Resolution power: Standard Resolution
Light source: Infrared (905nm, 10nm)
Laser class: 1(EN/IEC608251:2014, EN608251:2014 +A11:202
Aperture angle:
Horizontal: 190
Scanning frequency: 25Hz 35Hz 50Hz 75Hz 100Hz
Angular resolution:
Horizontal: 0.042, interlaced
: 0.083, interlaced
: 0.1667
: 0.25
: 0.333
: 0.5
: 0.667
: 1
Scan field flatness: Scan field flatness combined: 0.72 Typical conical error: 1sigma value 0.11 0.1 Typical tilt: 1sigma value +0.15 0.08
Heating: Selfheating with additional integrated heating
Working range: 0.2m... 80m
Scanning range:
At 10% remission factor: 40m
Measurement accuracy: 24mm
Spot size: Divergence: 11.9mrad At the viewing window: 13.5mm In 26m: 322nm In 40m: 489mm
Amount of evaluated echoes: 5
Aperture angle:
Horizontal: 190
Angular resolution:
Horizontal: 0.042, interlaced
: 0.083, interlaced
: 0.1667
: 0.25
: 0.333
: 0.5
: 0.667
: 1
Scanning range:
At 10% remission factor: 40m
Connection type: 4x M12 round connector
Supply voltage 24VDC, 20%
Power consumption: 22W, + 55W heating (typical)
Housing material: AlSi12
Housing color: Gray (RAL 703
Window material: Polycarbonate, scratchresistant coating
Enclosure rating: IP65 (EN60529, Section 14.2. IP67 (EN60529, Section 14.2.
Protection class: III (IEC61140:20161
Weight: 3.7kg
Dimensions (Lx Wx H): 160mmx 155mmx 185mm
MTBF: >100years
MTTF D : >100years
Response time: ≥10ms
Detectable object shape: Almost any
Systematic error: 25mm (1m... 10m) 35mm (10m... 20m) 50mm (20m... 30m)
Statistical error: 6mm (1m... 10m) 8mm (10m... 20m) 14mm (20m... 30m)
Integrated application: Field evaluation Output of measurement data
Number of field sets: 10fields
Simultaneous evaluation cases: 10
Filter: Echo filter Fog filter Particle filter Average filter Glare filter
Ethernet: TCP/IP, UDP/IP
Function: Host and AUX, NTP
Data transmission rate: 10/100MBit/s
Serial: RS232, RS422
Function: Host and AUX
Data transmission rate: 9.6kBaud... 500kBaud
CAN
Function: Extension of outputs
Data transmission rate: 20kBit/s, 500kBit/s, 1MBit/s, Synchronization
USB:
Remark: MiniUSB
Function: Service interface
Digital inputs: 4(Digital, encoder (HTL), synchronization)
Digital outputs: 6(digital)
Optical indicators: 5LEDs (Additional 7segment display)
Ethernet: TCP/IP, UDP/IP
Function: Host and AUX, NTP
Data transmission rate: 10/100MBit/s
Serial: RS232, RS422
Function: Host and AUX
Data transmission rate: 9.6kBaud... 500kBaud
CAN
Function: Extension of outputs
Data transmission rate: 20kBit/s, 500kBit/s, 1MBit/s, Synchronization
USB:
Remark: MiniUSB
Function: Service interface
Object remission: 2%... >1,000% (reflectors)
Electromagnetic compatibility (EMC):
Emitted radiation: Industrial environment (IEC6100063:2020 / ENIEC6100063:2007 +A1:201
Electromagnetic immunity: Industrial environment (IEC6100062:2016 / ENIEC6100062:201
Vibration resistance:
Sine test: 10Hz... 150Hz, Amplitude 0.35mm to 5g, 20cycles
Shock resistance: 15g, 11ms, 6single shocks/axis 10g, 16ms, 1,000continuous shocks/axis
Impact resistance: IK05, IK06, IK07 (DINEN50102:09199
Ambient operating temperature: 30C... +50C
Storage temperature: 40C... +70C
Ambient light immunity: 70,000lx
Electromagnetic compatibility (EMC):
Emitted radiation: Industrial environment (IEC6100063:2020 / ENIEC6100063:2007 +A1:201
Electromagnetic immunity: Industrial environment (IEC6100062:2016 / ENIEC6100062:201
Vibration resistance:
Sine test: 10Hz... 150Hz, Amplitude 0.35mm to 5g, 20cycles
Note on use: The sensor does not constitute a safety component as defined by relevant legislation on machine safety.
EU declaration of conformity
UK declaration of conformity
ACMA declaration of conformity
ChinaRoHS
KC Mark Certificate
cTUVus Certificate
ECLASS 5.0: 27270990
ECLASS 5.1.4: 27270990
ECLASS 6.0: 27270913
ECLASS 6.2: 27270913
ECLASS 7.0: 27270913
ECLASS 8.0: 27270913
ECLASS 8.1: 27270913
ECLASS 9.0: 27270913
ECLASS 10.0: 27270913
ECLASS 11.0: 27270913
ECLASS 12.0: 27270913
ETIM 5.0: EC002550
ETIM 6.0: EC002550
ETIM 7.0: EC002550
ETIM 8.0: EC002550
UNSPSC 16.0901: 41111615
